RapidFill

Water-Driven Pump System, dilution range is 1:20 to 1:1000 up to 15 GPM (56 LPM)

RapidFill is designed to quickly fill an auto scrubber using properly dosed water and cleaning solution. With RapidFill, users can easily dial in the exact dilution ratio that is required by turning the lower end of the water driven pump. RapidFill models are available with backflow prevention and/or filtration options.

Applications

Filling Large Tanks Filling Scrubbers Filling Totes & Drums

Can fill auto scrubbers up to four times faster compared to venturi dispensers

Adjustable dosage capabilities reduces the need to purchase additional pumps

Allows for use in all locations in North America using backflow preventer option.

RapidFill Resources

Everything you need all in one place

Can fill auto scrubbers four times faster

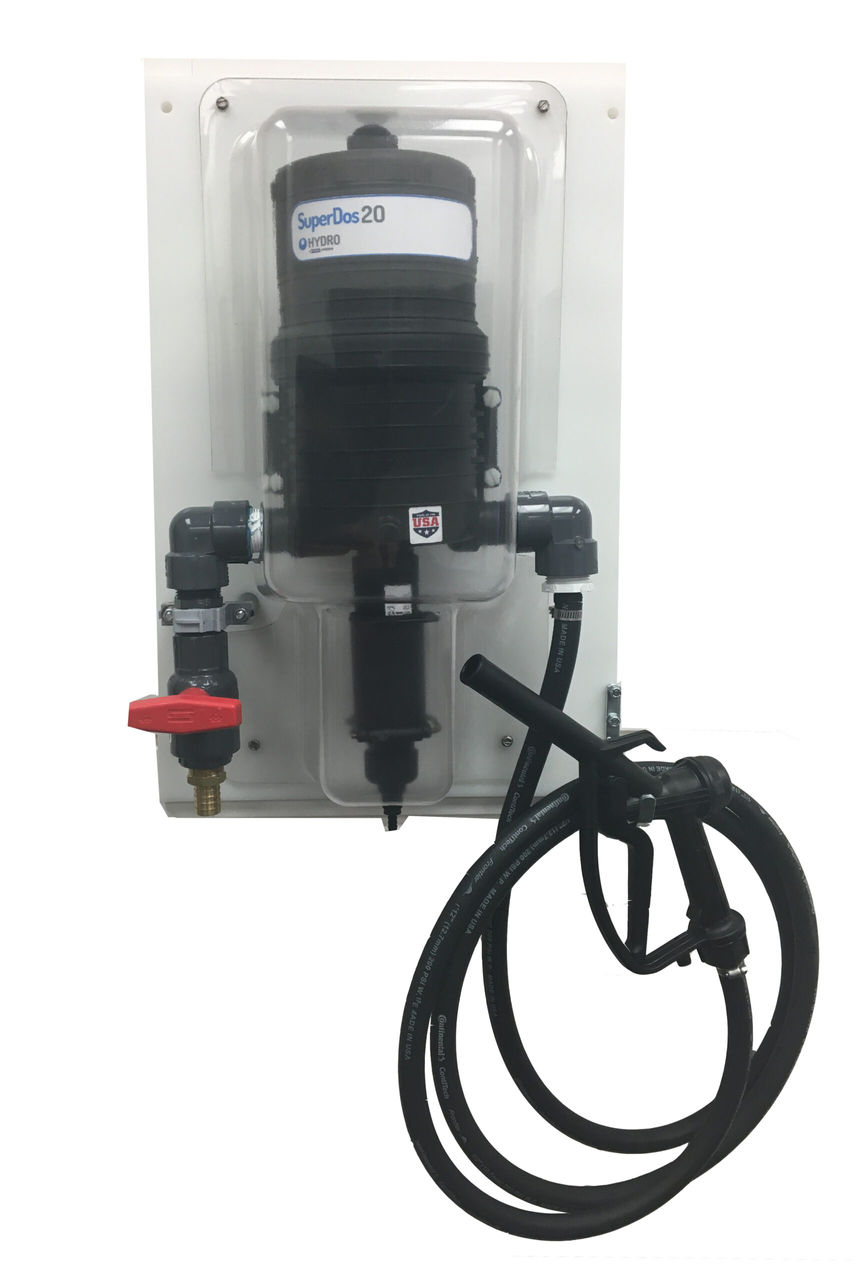

Compared to venturi dispensers, RapidFill can fill a container four times faster with water and chemistry. RapidFill features a SuperDos water-driven pump that can reach a flow rate up to 15 GPM or 56 LPM.

Adjustable dosage capabilities reduces the need to purchase additional pumps

RapidFill can be used with different chemistries that feature different dilution ratios. The dilution ratio of RapidFill can be adjusted by twisting the lower end. As a result, different equipment does not need to be purchased.

Accessories are available with RapidFill that allow for the unit to be used in facilities where backflow prevention is required.

In order to meet backflow requirements, RapidFill units are available with preventers. In the case of poor water quality, a filter option is available. As a result, additional accessories do not need to be purchased to meet local regulations.

Part No.Dilution RatioDescription
HYD113228RF1:1000 to 1:250RapidFill 0.3% with No backflow prevention and No filtration
HYD113228RFB1:1000 to 1:250RapidFill 0.3% with Backflow prevention and No filtration
HYD113228RFBF1:1000 to 1:250RapidFill 0.3% with Backflow prevention and Filtration
HYD113205RF1:500 to 1:40RapidFill 2.5% with No backflow prevention and No filtration
HYD113205RFB1:500 to 1:40RapidFill 2.5% with Backflow prevention and No filtration
HYD113205RFBF1:500 to 1:40RapidFill 2.5% with Backflow prevention and Filtration
HYD113206RF1:250 to 1:20RapidFill 5% with No backflow prevention and No filtration
HYD113206RFB1:250 to 1:20RapidFill 5% with Backflow prevention and No filtration
HYD113206RFBF1:250 to 1:20RapidFill 5% with Backflow prevention and Filtration
filenotfound

No files found.

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

15 GPM or 56 LPM.

Yes, there are units available that can feature filters and/or backflow prevention.

1:1000 or 0.1%

SuperDos 20.

Yes, there is a 10 foot (3 meter) long assembly that comes standard with all RapidFill units.
