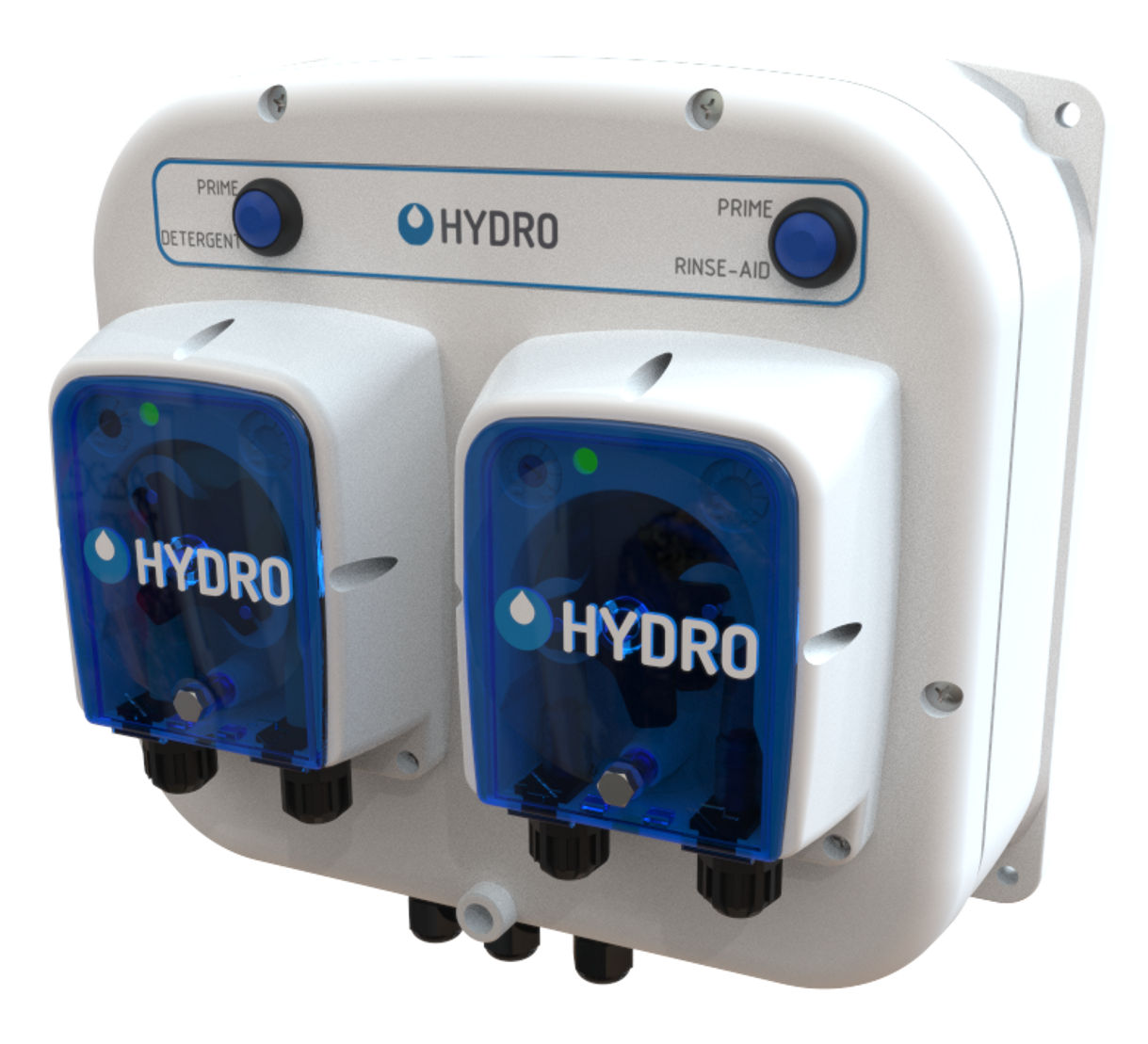

DM-500

Peristaltic Pump, warewashing, 2 Chemistries, Up to 3.38 oz /min ( 100 mL per min.)

The DM-500 is an economical option for warewash that requires dual product dosing. This peristaltic pump-based unit covers the full range of products including rinse aid and detergent and is available in multiple models to accommodate multiple styles of dish machines used globally. The small footprint makes this a perfect product for your kitchen.

Markets

Kitchen

Applications

Warewashing

Hydro's simplest warewash dispenser for a dual chemicals in kitchens consuming less chemical.

Simple potentiometer programming to adjust time and speed of dosing.

Units are certified safe per ETL and CE electrical codes.

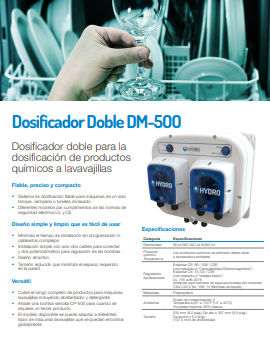

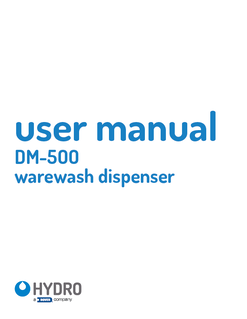

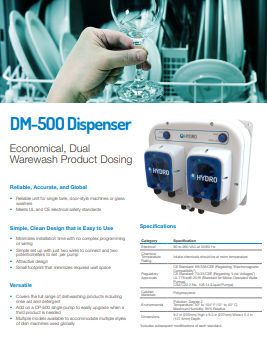

DM-500 Resources

Everything you need all in one place

Application diversity

Reliable unit for single tank, door-style machines or glass washers

Certifications

Meets CE electrical safety standards

Reduces installation time

Minimizes installation time with no complex programming or wiring. Comes pre-wired with only two wires to connect and 1-2 potentiometers to set

Handles multiple chemistries for multiple machine types

Covers the full range of dishwashing products including rinse aid, detergent and sanitizer. Multiple models available to accommodate multiple styles of dish machines used globally

MODEL BUILDERHYDRO PREFIXBASE MODELADJ. COMBOPUMP FLOW RATEPUMP PRESSURETUBE MATERIALADJ. COMBOPUMP FLOW RATEPUMP PRESSURETUBE MATERIALELECTRICAL APPROVALS
HYDDM500MP
2TV1001SA2TV0173SIUL
HYDDM500MP2TV1001SA2TV0173SIUL
HYDDM500MP
2TV1001SA2TV0173SICE
HYDDM500MP2TV1001SA2TV0173SICE
MODELDESCRIPTION
HYD1009912410-Pack Santoprene® Squeeze Tubes
HYD1009912510-Pack Silicone Squeeze Tubes
HYD1009912610-Pack Tygon® Squeeze Tubes
HYD10099142CE Detergent Install Kit
HYD10099143CE Rinse Install Kit
HYD10099144UL Detergent Install Kit
HYD10099145UL Rinse Install Kit
Category Specification
Electrical 90 to 260 VAC at 50/60 Hz
Chemical Temperature Rating Intake chemicals should be at room temperature
Regulatory ApprovalsCE Standard: 89/336/CEE (Regarding “Electromagnetic Compatibility”) CE Standard: 73/23/CEE (Regarding “Low Voltages”) UL 778:ed6-2016 (Standard for Motor-Operated Water Pumps) CSA C22.2 No. 108:14 (Liquid Pumps)
Cabinet Materials Polypropylene
Environmental Pollution: Degree 2 Temperature: 50° to 104° F (10° to 40° C) Maximum Humidity: 95% Relative
Dimensions 9.2 in (235mm) High x 9.3 in (237mm) Wide x 5.4 in (137.5mm) Depth
*Includes subsequent modifications of each standard.
filenotfound

No files found.

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

Common Questions

Have a different question? Reach Out

There are 1 or 2 potentiometers per pump that control pump run time or speed.

DM-500 is best for smaller kitchens that consume less chemical. The simple design is accurate/reliable and minimizes features and reporting to control costs.

The unit ships with an install kit that includes the mounting bracket/screws, pickup tubing, and injection fittings. The also ships with a detergent and rinse squeeze tube.

To prime, there is a switch on the underside of the unit that puts it into priming mode. Once that is done, the two blue buttons on the unit can be used to prime detergent and rinse.

Please check the locator associated with the Hydro website.
