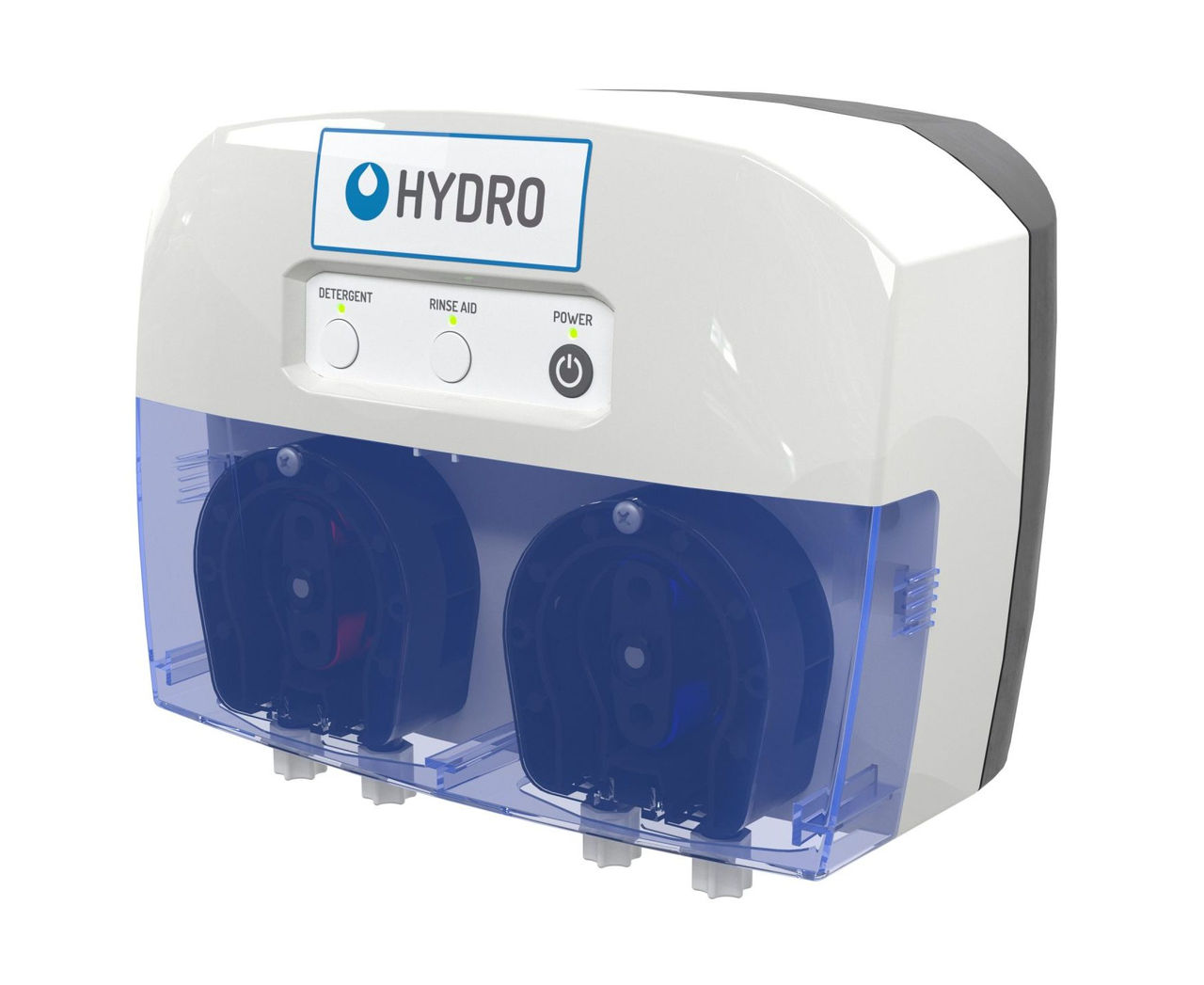

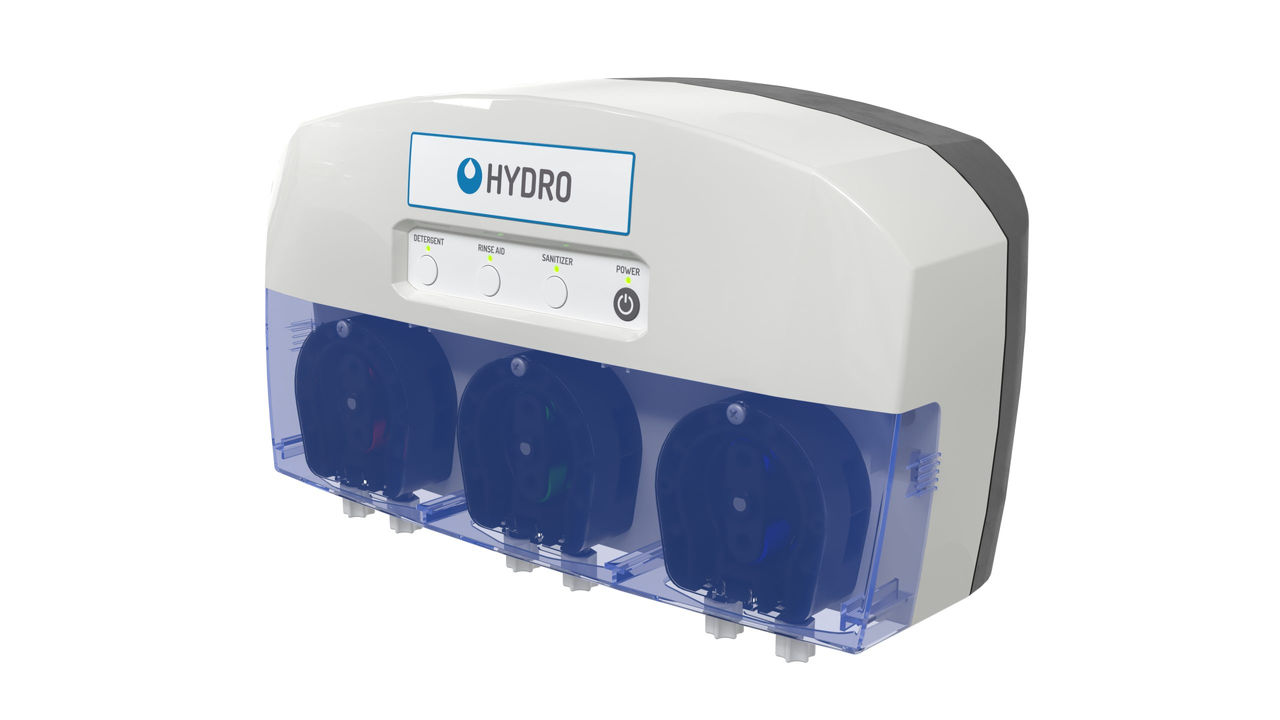

    DMx

    Peristaltic Pump, warewashing, 3 Chemistries, Up to 12 oz /min (355 mL per min.)

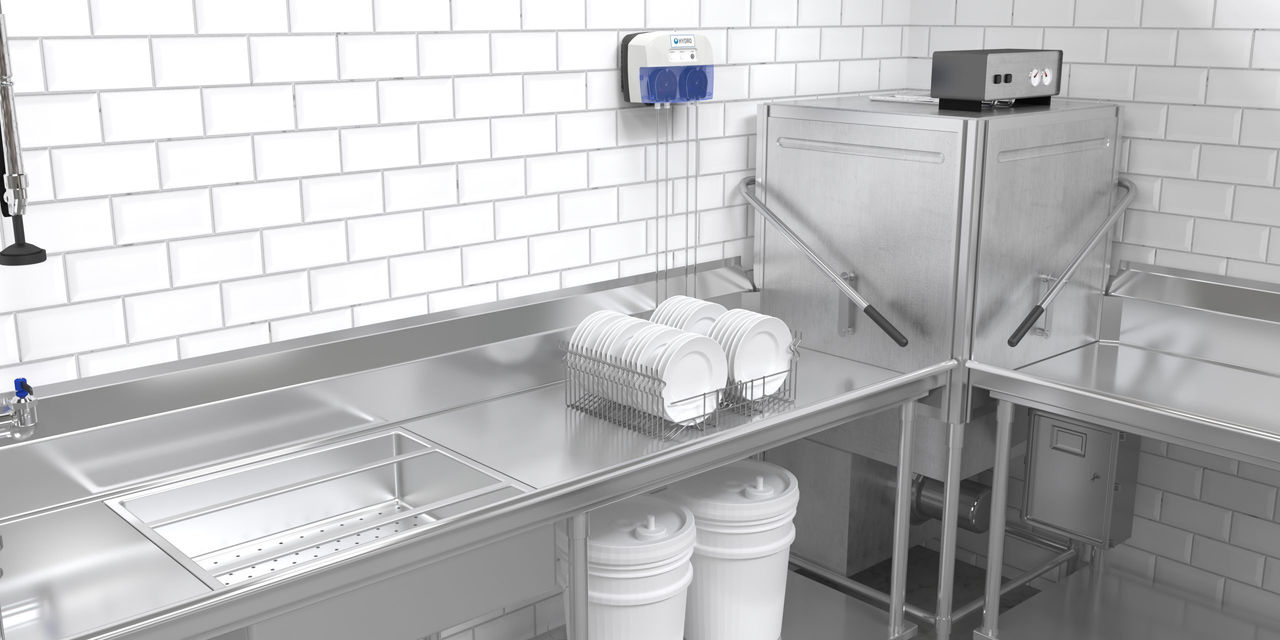

    ​The DMx is a smart, versatile warewash dispenser, designed to accurately and reliably dispense solid or liquid detergents, rinse aid or sanitizer in commercial kitchens. It works anywhere in the world on most high or low temperature door, conveyer, and flight-style machines with numerous optional upgrades to enhance its functionality. The DMx is compatible with Hydro Connect (Hydro’s IoT platform).

    Markets

    Kitchen

    Applications

    Warewashing

    Prevent food code violations with optional temperature and out of product sensors.

    Improved motor and race design to extend squeeze tube and motor life.

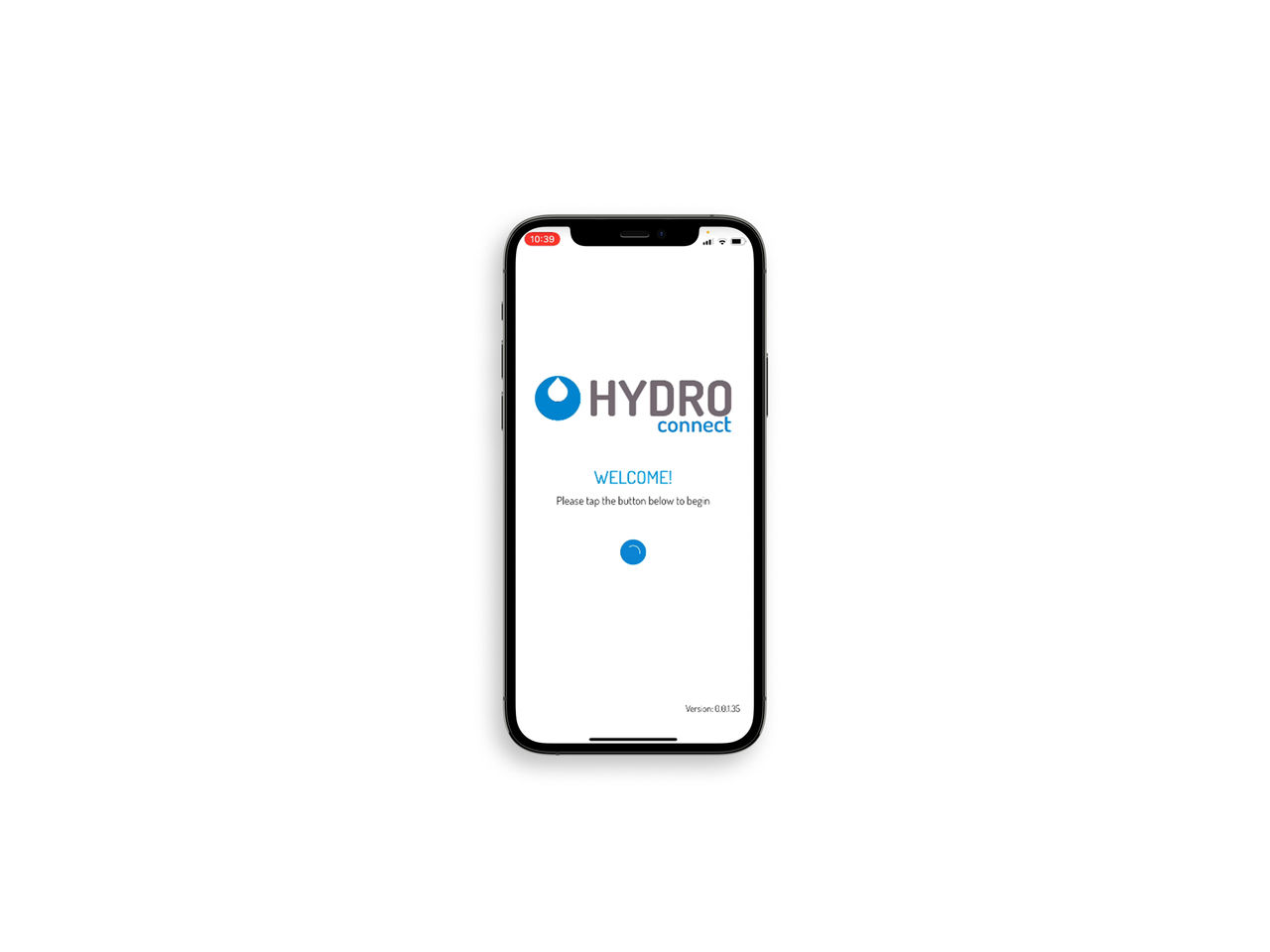

    Quick configuration and intuitive service using the Hydro Connect mobile applications

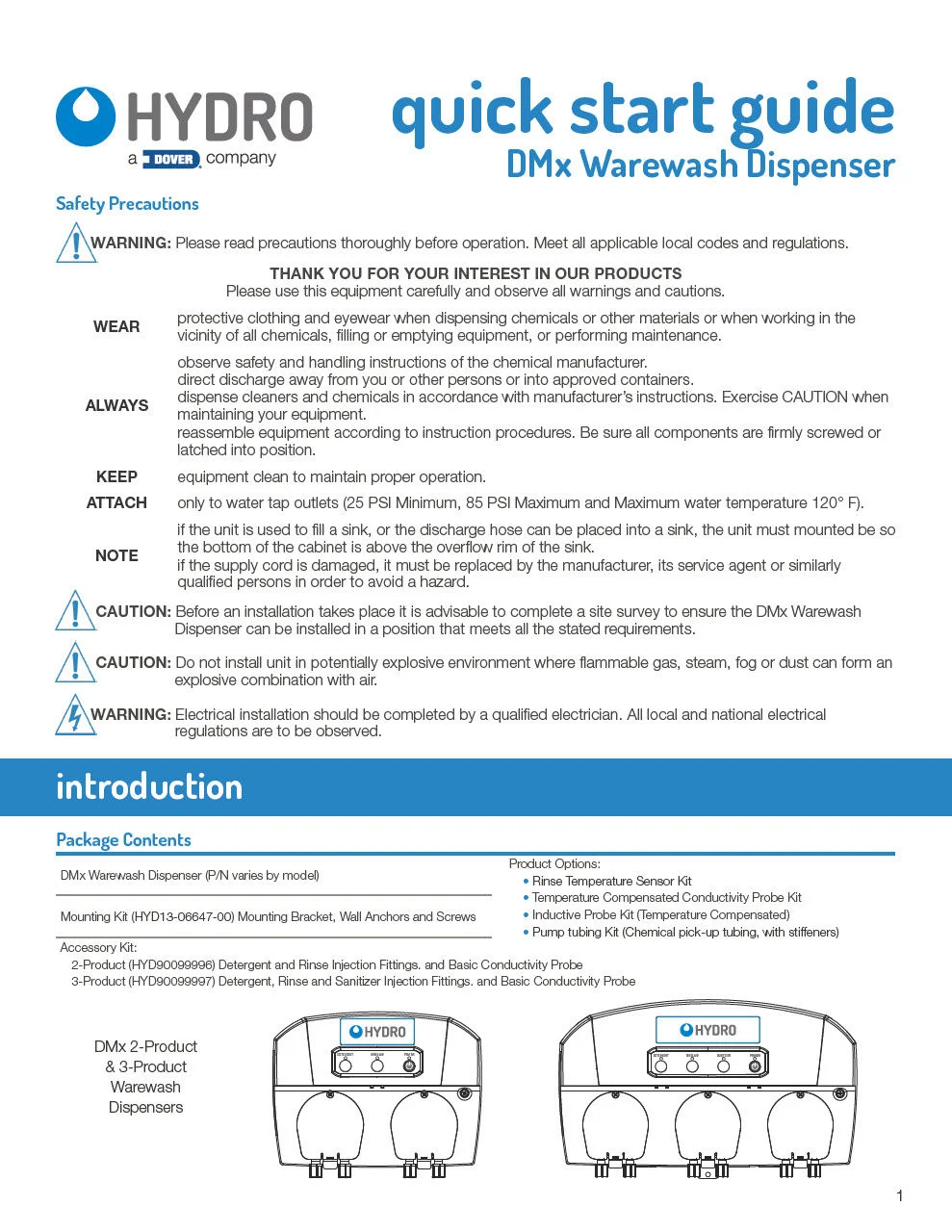

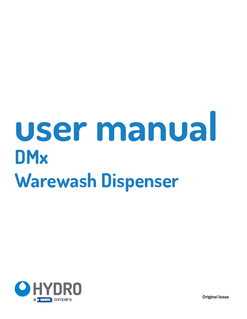

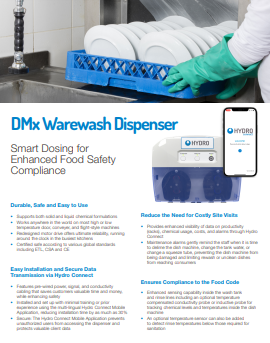

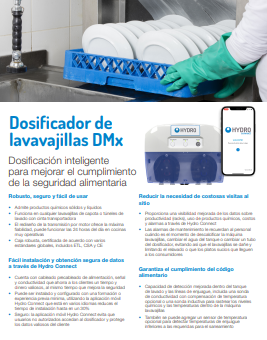

    DMx Resources

    Everything you need all in one place

    Durable, safe and easy to use

    • Supports both solid and liquid chemical formulations
    • Works anywhere in the world on most high or low temperature door, conveyer, and flight-style machines
    • Redesigned motor drive offers ultimate reliability, running around the clock in the busiest kitchens
    • Certified safe according to various global standards including ETL, CSA and CE

    Easy installation and secure data transmission via Hydro Connect

    • Features pre-wired power, signal, and conductivity cabling that saves customers valuable time and money, while enhancing safety
    • Installed and set up with minimal training or prior experience using the multi-lingual Hydro Connect Mobile Application, reducing installation time by as much as 30%

    Reduce the need for costly site visits

    • Provides enhanced visibility of data on productivity (racks), chemical usage, costs, and alarms through Hydro Connect
    • Maintenance alarms gently remind the staff when it is time to delime the dish machine, change the tank water, or change a squeeze tube, preventing the dish machine from being damaged and limiting rewash or unclean dishes from reaching consumers

    Ensures compliance to the food code

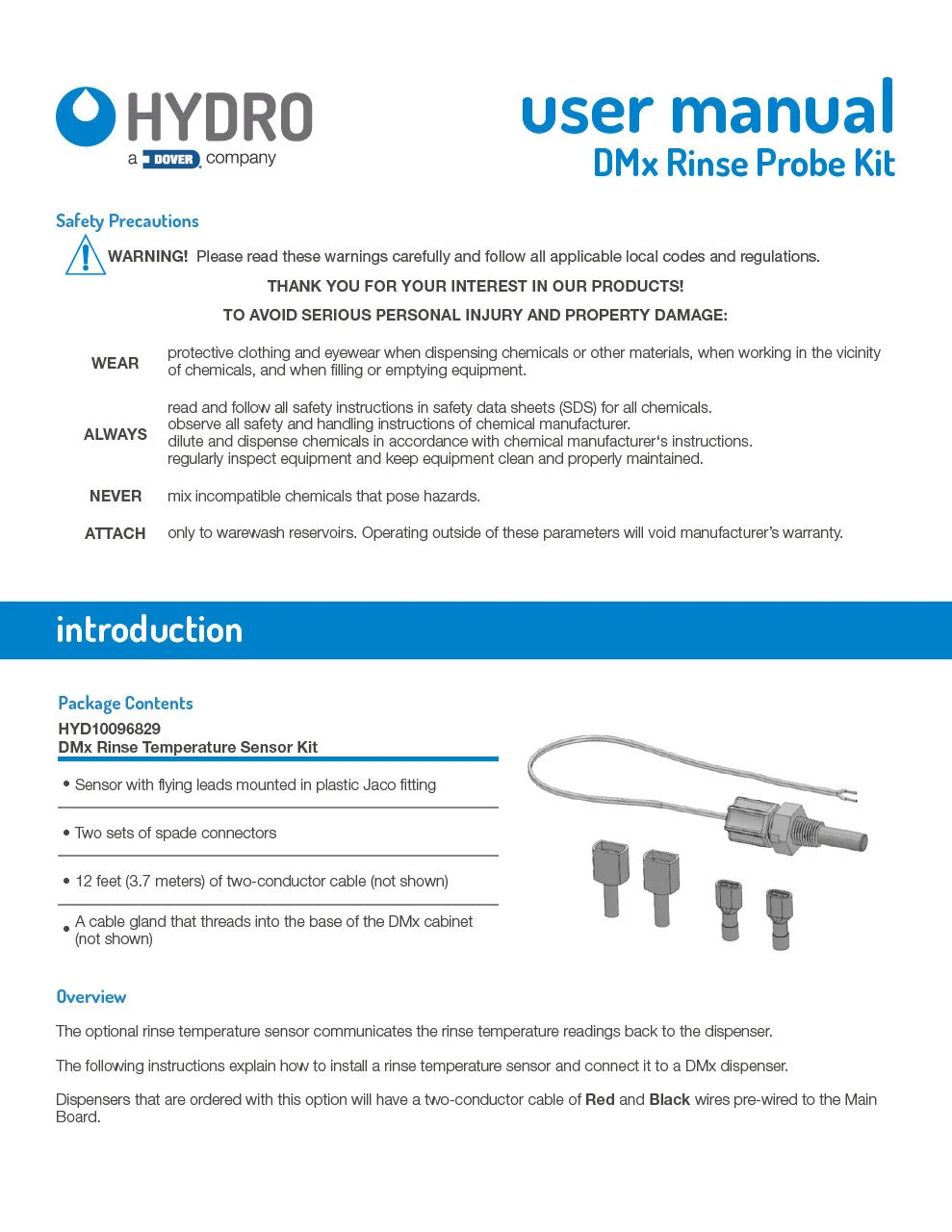

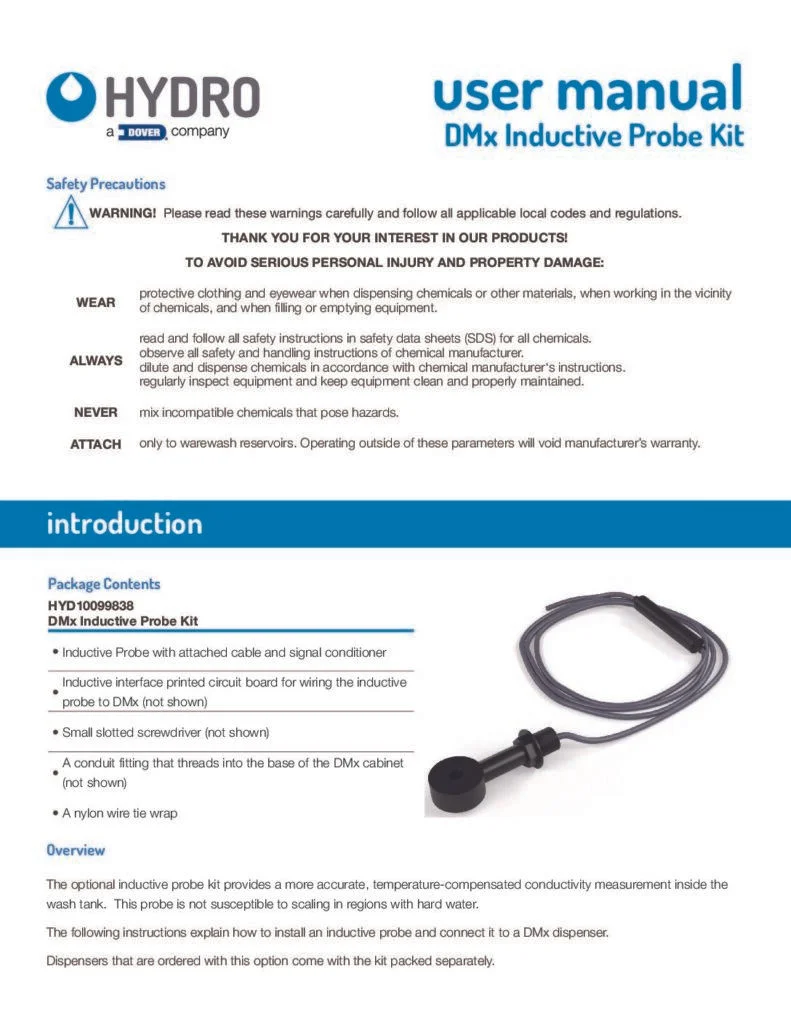

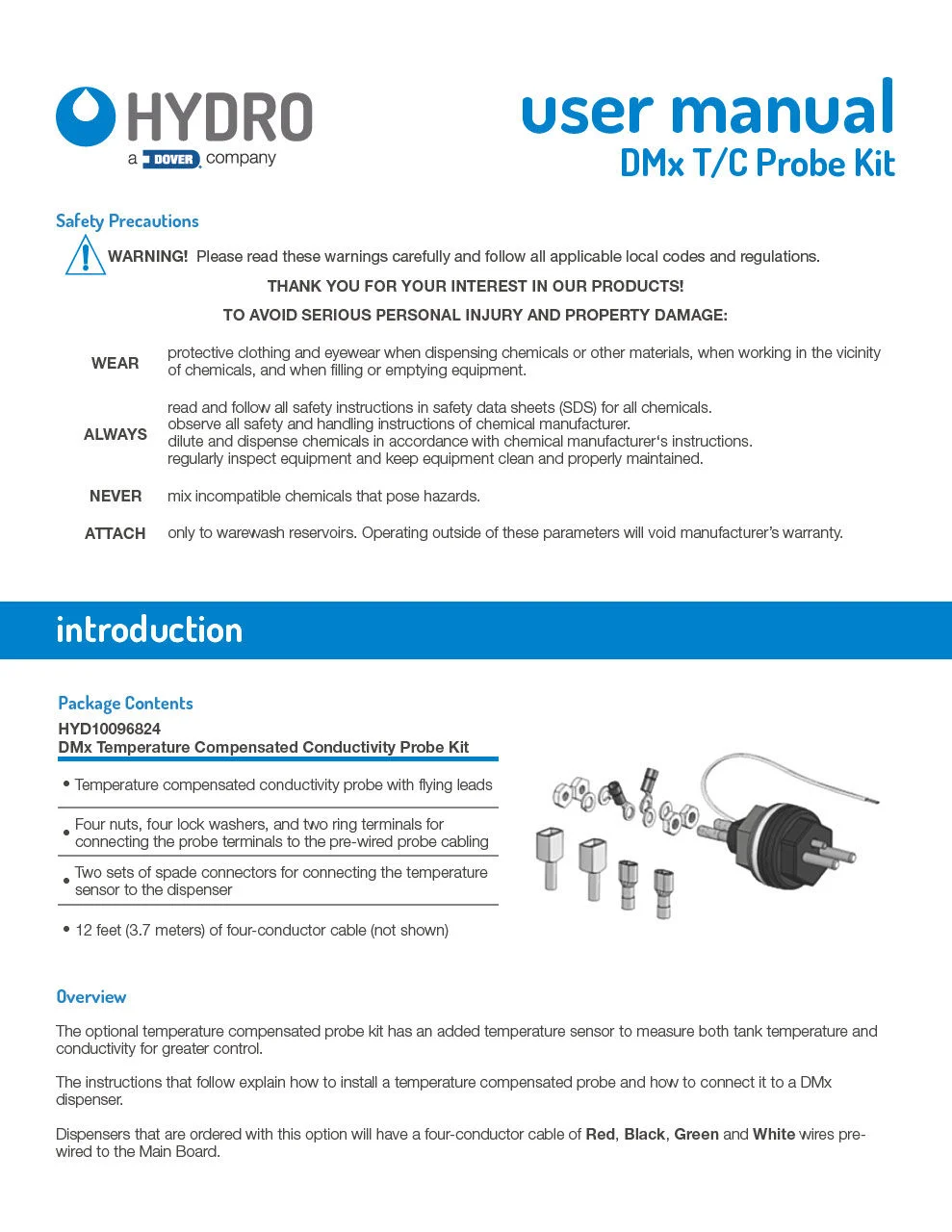

    Enhanced sensing capability inside the wash tank and rinse lines including an optional temperature compensated conductivity probe or inductive probe for tracking chemical levels and temperatures inside the dish machine

    Spare Parts

    ModelDescription
    HYD10099822Pump Motor Kit - Detergent
    HYD10099823 Pump Motor Kit - Rinse
    HYD10099826 Solenoid Valve Kit, 1/4” Fittings
    HYD13-06563-00Pump Tube Compression Kit, 1/4” Fittings (10 Pack)
    HYD13-06399-10Pump Tube Detergent EPDM, 1/4” Fittings (10 Pack)
    HYD13-06395-10 Pump Tube Rinse EPDM, 1/4” Fittings (10 Pack)
    HYD10099815Pump Spinner Kit (1 Red/Detergent and 1 Blue/Rinse)

    HYDRO Connect DMx Video

    HYDRO Connect Chemical Admin Video

    HYDRO Connect User Reports Video

    HYDRO Connect DMx SPN Video

    HYDRO Connect Chemical Admin SPN Video

    HYDRO Connect User Reports SPN Video

    Ready to get started?

    Our experts are here to help. Tell us more about what you need
    so we can connect you to the right Hydro experts.

    Common Questions

    Have a different question? Reach Out

    The DMx is setup using a mobile device and the Hydro Connect app. The data from the unit is uploaded to the mobile device via Bluetooth and transmitted to Hydro Connect using the mobile devices internet connection.

    No, the user interface for the Kitchen staff are the LEDs and prime buttons. Installers use the mobile application.

    The standard tube for the detergent pump is EPDM with an OD of 1/4'' and a 1/4'' compression fitting.

    The DMx has an improved pump race and motor that make it more reliable than competitive alternatives. It also can be fitted with two tempreature sensors (one in the tank and one in the rinse line) to prevent common food code violations.

    Please check the locator associated with the Hydro website.
