Streamline

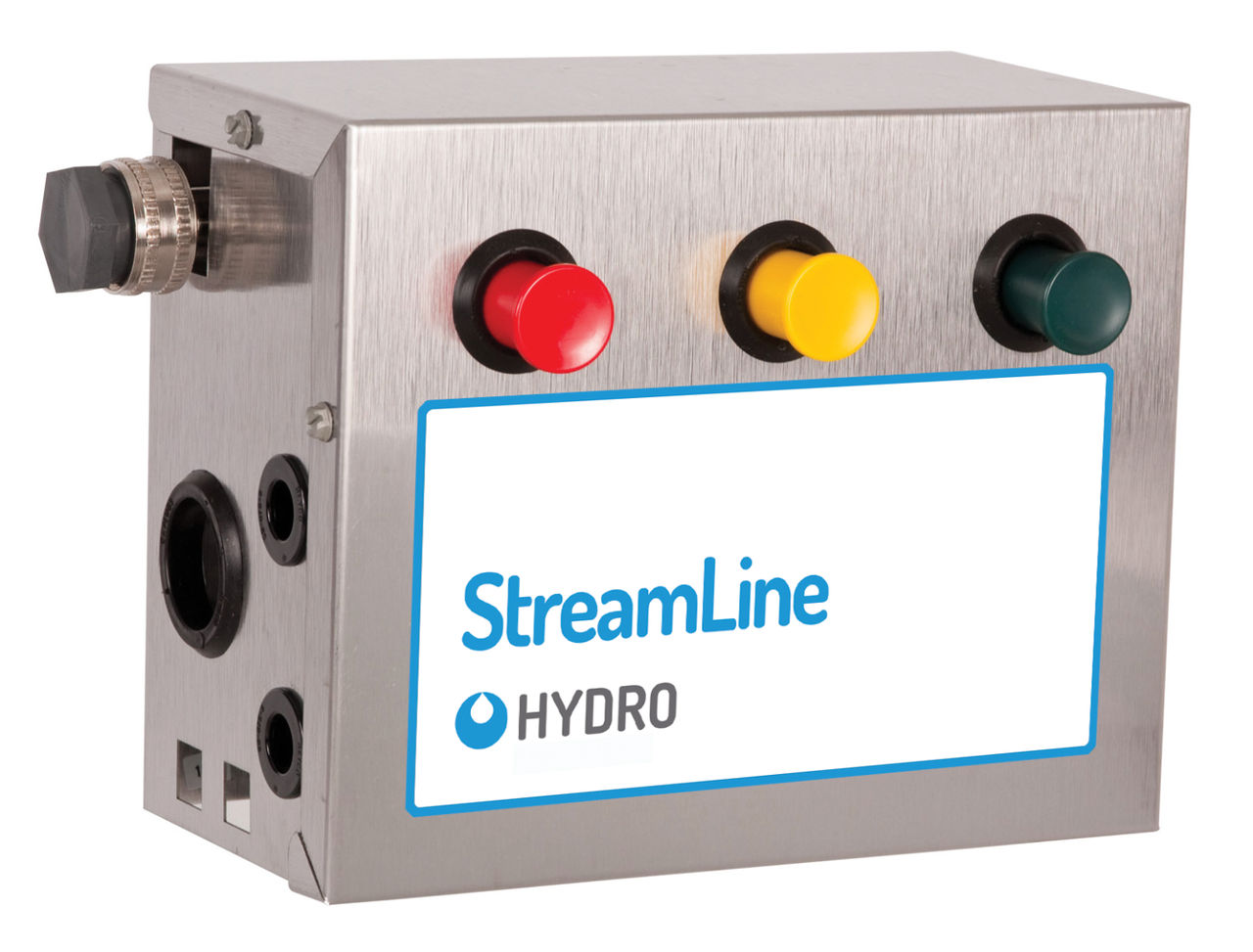

Venturi Dispenser, wall mounted, stainless steel cabinet, up to 4 chemistries w/ 1 dispenser

Solutions dispensed through Hydro Systems’ Streamline Series are automatically diluted to the proportion called for by the concentrate manufacturer. Streamline is a durable dispenser that can handle a demanding environment. If a dispenser will be used in a high traffic area, your choice is Streamline!

Applications

Filling Mop Buckets Filling Sinks Filling Spray Bottles

Utilizes Hydro Systems tips that allow for up to 20% better dilution accuracy

Multiple button configurations allow for the multiple chemistries to be used reducing the total cost of ownership by up to 25%

Features stainless steel cabinets that reduces the chance for breakage by 50%

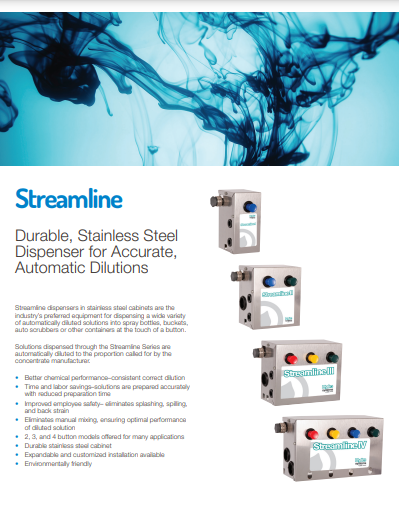

Streamline Resources

Everything you need all in one place

Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy

The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need to reclean.

Multiple button configurations allow for multiple chemistries to be used with the same dispenser

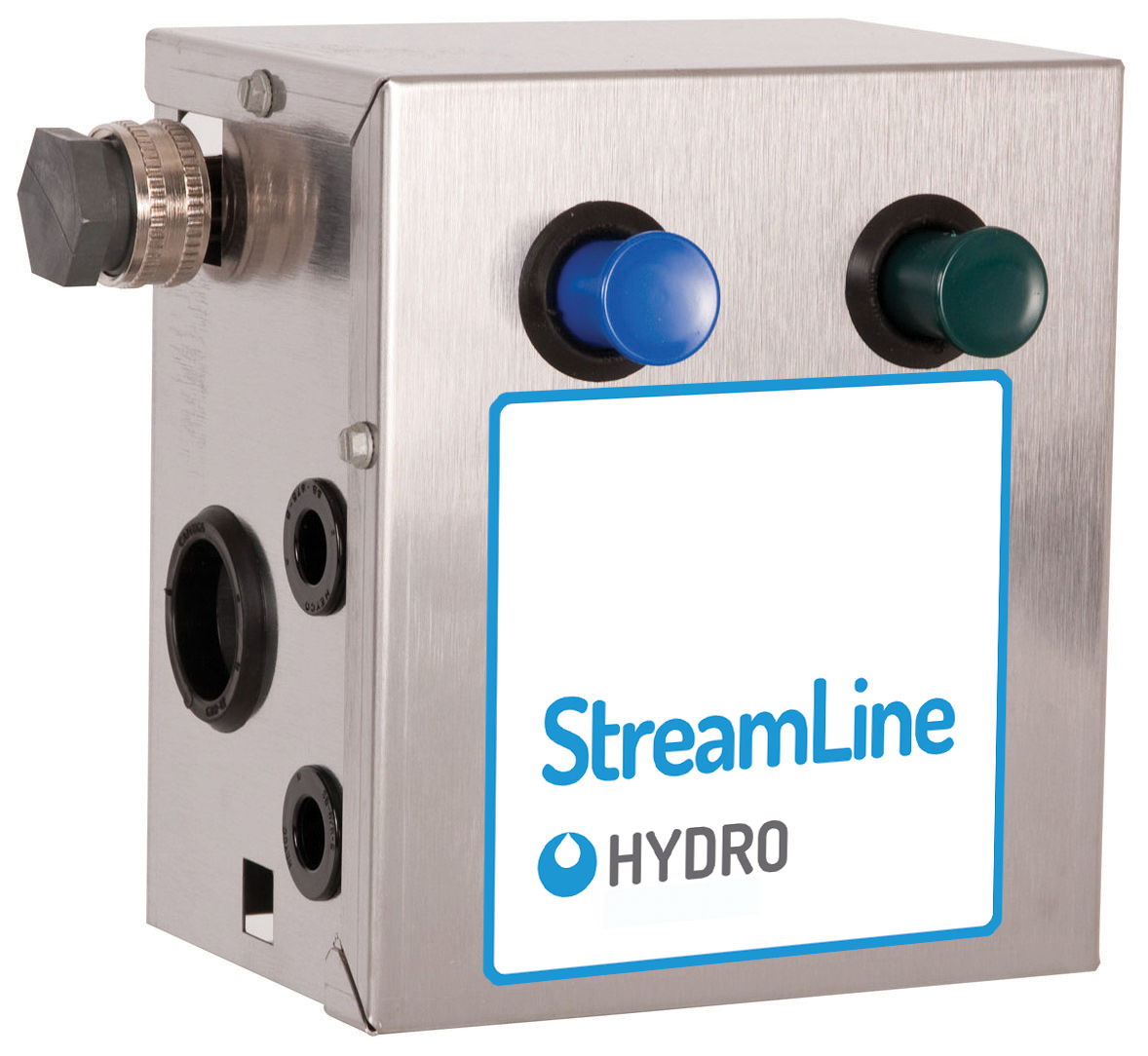

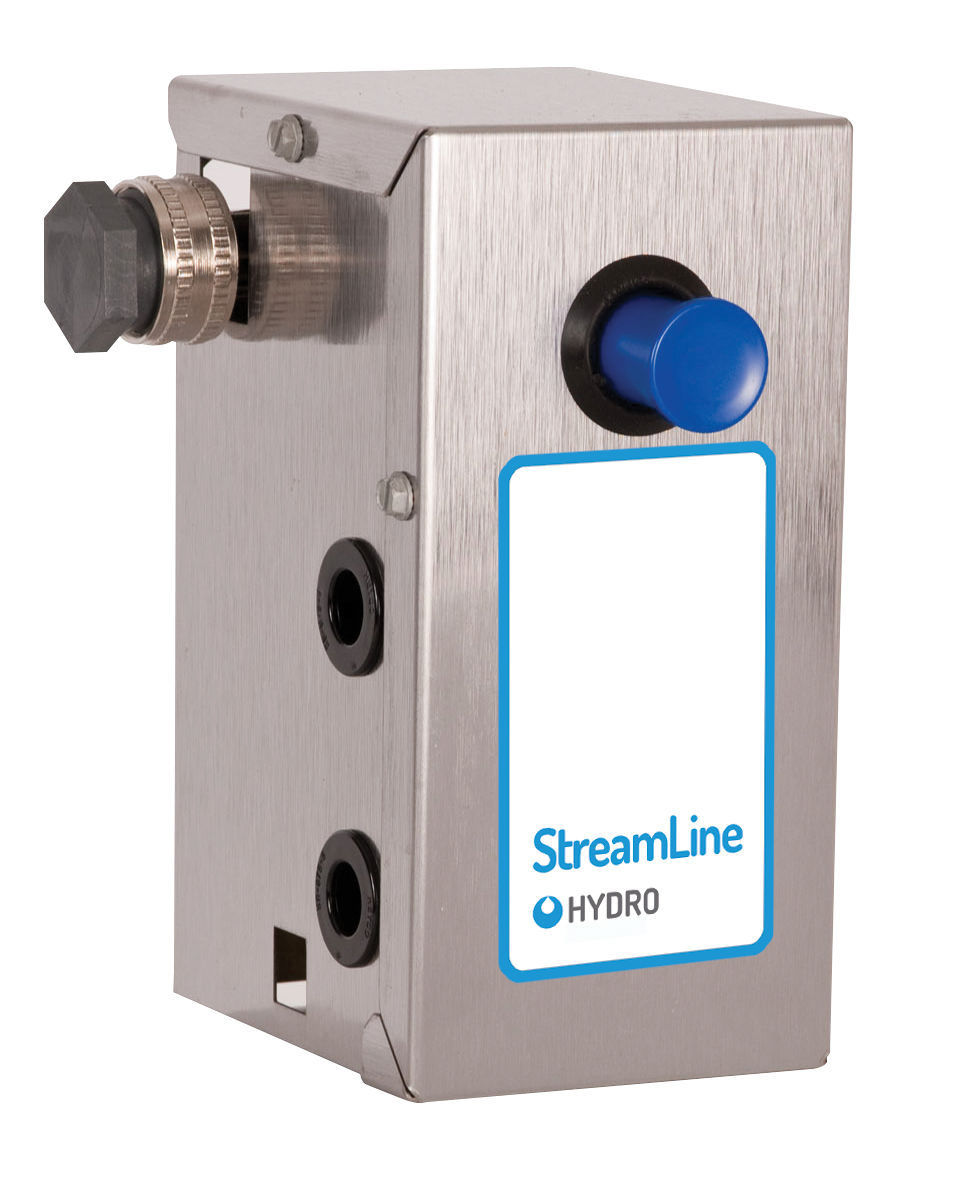

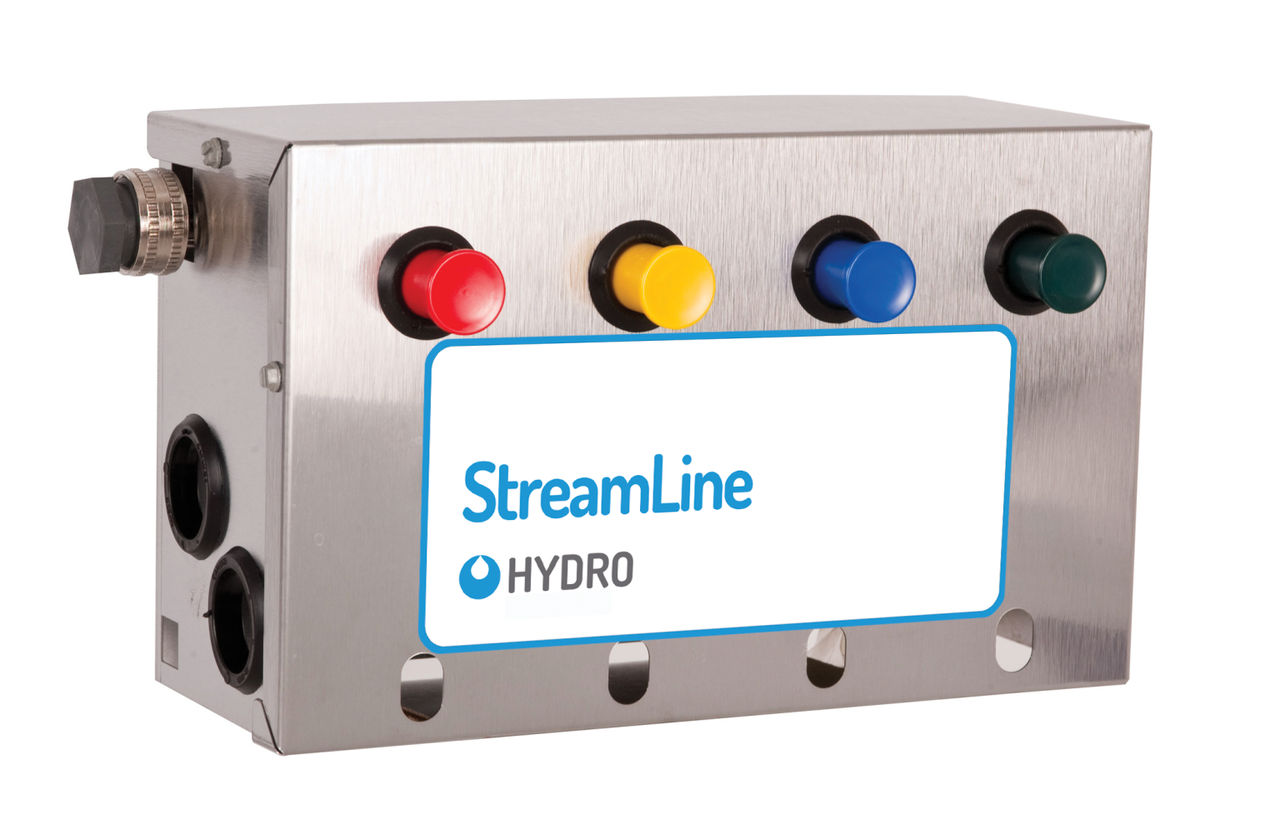

Streamline features 1, 2, 3, or 4 button configurations. Instead of purchasing multiple dispensers to handle multiple chemistries, you can purchase one Streamline dispenser and reduce your cost of ownership by up to 25%.

A stainless steel enclosure reduces the chance of dispener breakage

Rough environments call for a durable dispenser. Streamline features a stainless steel cabinet that has been proven to reduce the chance of breakage by up to 50% compared to similar dispensers featuring plastic cabinetr

AirGap Eductor E-Gap Eductor Std. Eductor 1 GPM 3.5 GPM Approximate Dilution Range 1 GPM Max*/Min 3.5 GPM Max*/Min
832AG-2 8321832-2 10128:1/3:1 ––––
835AG-2 8351835-2 01–––– 350:1/3.5:1
842AG-2 8421842-2 20128:1/3:1 ––––
845AG-2 8451845-2 02–––– 350:1/3.5:1
847AG-2 8471847-2 11128:1/3:1 350:1/3.5:1
852AG-2 8521852-2 30128:1/3:1 ––––
855AG-2 8551855-2 03–––– 350:1/3.5:1
857AG-2 8571857-2 12128:1/3:1 350:1/3.5:1
859AG-2 8591859-2 21128:1/3:1 350:1/3.5:1
861AG-2 8611861-2 40128:1/3:1 ––––
862AG-2 8621862-2 13128:1/3:1 350:1/3.5:1
863AG-2 8631863-2 22128:1/3:1 350:1/3.5:1
868AG-2 8681868-2 31128:1/3:1 350:1/3.5:1
869AG-2 8691869-2 04–––– 350:1/3.5:1

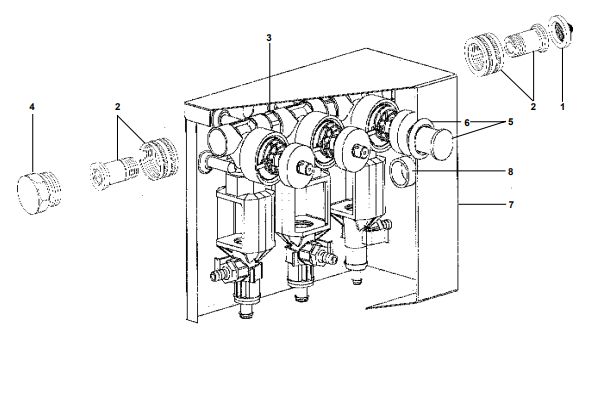

Streamline-1-2-3-Button-AirGap

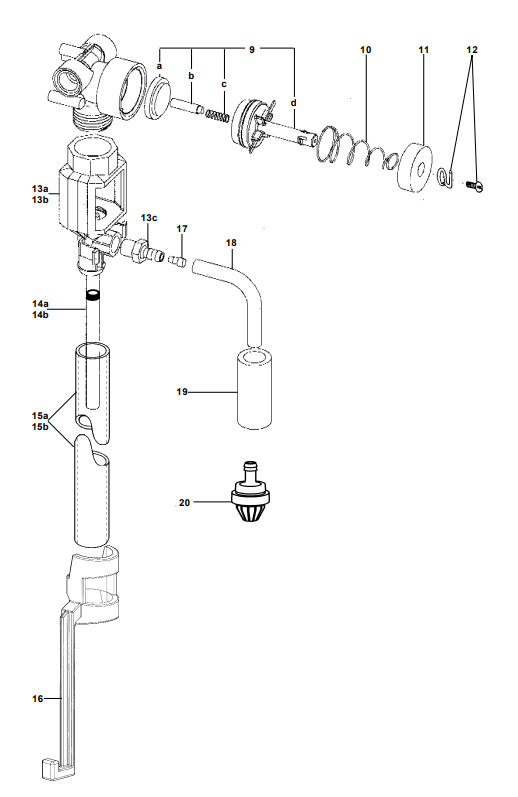

Streamline-1-2-3-Button-AirGap2
KeyPart No.Description
1238100 Strainer washer
2276700 Swivel connector
310075911 Hex nipple (3-button unit only)
10075950O-ring (two required per nipple)
4605201Male garden hose plug
5643801Button, green (includes #6 grommet)
643802Button, red (includes #6 grommet)
643803Button, yellow (includes #6 grommet)
643804Button, blue (includes #6 grommet)
643805Button, grey (includes #6 grommet)
6235900Grommet
7471000Cover, 1-button unit
472000Cover, 2-button unit
473000Cover, 3-button unit
473502Cover, 4-button unit
8901500Snap bushing (side holes)
910075980Valve parts kit: a. diaphragm,b. armature, c. spring, d. valve bonnet
1010079010Spring
1110079000Magnet
12643811Locking button, green (includes 5 & 6)
643812Locking button, red (includes 5 & 6)
643813Locking button, yellow (includes 5 & 6)
643814Locking button, blue (includes 5 & 6)
643815Locking button, grey (includes 5 & 6)
13 a 1601 GPM Eductor assembly
13b 1613.5 GPM Eductor assembly (assemblies include 13c hose barb)
13c 3401-R Eductor hose barb only
14 a 100701701 GPM inner discharge tube
14b 100704703.5 GPM inner discharge tube
15 a 100647941 GPM outer discharge tube (7")
15b 100773103.5 GPM outer discharge tube (4')
16* 10080720Hose hook, dark grey (standard) * Hose hooks are for 3.5 GPM discharge tubes
17690014Metering tip kit
18500870Tubing, 1/4" x 7'
19509900Weight
2010089410Foot valve -- Viton (EPDM also available. Order 10076302.)

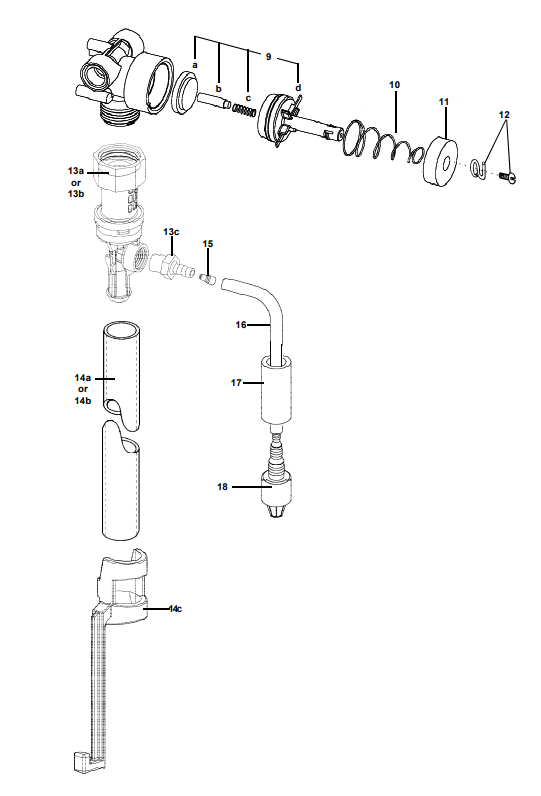

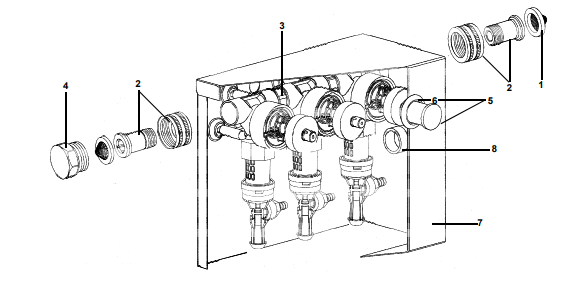

Steamline-1-2-3-Button-EGap
KeyPart No.Description
1238100Strainer washer
2276700Swivel connector
3100759113/8" Hex nipple
10075950O-rings (not visible) -- 2 per nipple
4605201Garden hose plug
5643801Button, green (includes #6)
643802Button, red (includes #6)
643803Button, yellow (includes #6)
643804Button, blue (includes #6)
643805Button, grey (includes #6)
6235900Grommet
7471000Cover, 1-button unit
472000Cover, 2-button unit
473000Cover, 3-button unit
473502Cover, 4-button unit
8901500Bushing
910075980Valve parts kit: a. diaphragm b. armature, c. spring, d. valve bonnet
1010079010Spring
1110079000Magnet
12643811Locking button, green (includes 5 & 6)
643812Locking button, red (includes 5 & 6)
643813Locking button, yellow (includes 5 & 6)
643814Locking button, blue (includes 5 & 6)
643815Locking button, grey (includes 5 & 6)
13a 2913.5 GPM eductor assembly
13b 2901 GPM eductor assembly
13c 3401-R Eductor hose barb
14a 10088822Discharge tube, 1 GPM (1/2" x 8")
14b 90048495Discharge tube, 3.5 GPM (1/2" x 4')
14c* 10080730Hose hook, dark grey
10080731Hose hook, sky blue
10080732Hose hook, red
10080733Hose hook, green
10080734Hose hook, light grey
10080735Hose hook, yellow * Hooks are for 4 GPM discharge tubes
15690014Metering tip (kit)
16500870Tubing, 1/4" x 7'
17509900Weight
1810076301Foot valve -- Viton (EPDM also available, order 10076302)

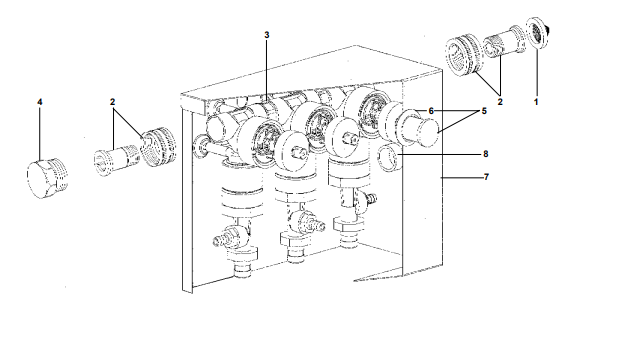

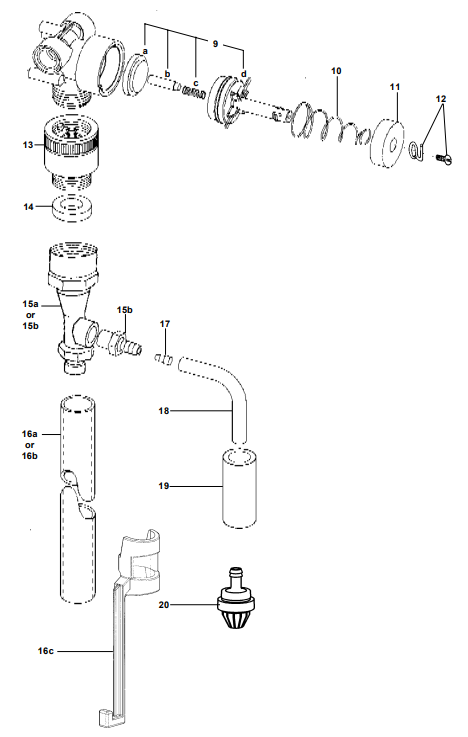

Streamline-1-2-3-Button-Standard
KeyPart No.Description
1238100Strainer washer
2276700Swivel connector
3100759113/8" Hex nipple
10075950O-rings (not visible) -- 2 per nipple
4605201Garden hose plug
5643801Button, green (includes #6)
643802Button, red (includes #6)
643803Button, yellow (includes #6)
643804Button, blue (includes #6)
643805Button, grey (includes #6)
6235900Grommet
7471000Cover, 1-button unit
472000Cover, 2-button unit
473000Cover, 3-button unit
473502Cover, 4-button unit
8901500Bushing
910075980Valve parts kit: a. diaphragm b. armature, c. spring, d. valve bonnet
1010079010Spring
1110079000Magnet
12643811Locking button, green (includes 5 & 6)
643812Locking button, red (includes 5 & 6)
643813Locking button, yellow(includes 5 & 6)
643814Locking button, blue (includes 5 & 6)
643815Locking button, grey (includes 5 & 6)
1310035310Siphon breaker
14270702Washer
15a 4412104 GPM Eductor assembly (yellow)
15b 4402151 GPM Eductor assembly (grey) Assemblies include 15c hose barb.
15c 3401-R Eductor hose barb
16a 6422-A Discharge tube, 1 GPM (1/2" x 8")
16b 5058-4DA Discharge tube, 4 GPM (1/2" x 4')
16c* 10080730Hose hook, dark grey
10080730Hose hook, sky blue
10080730Hose hook, red
10080730Hose hook, green
10080730Hose hook, light grey
10080730Hose hook, yellow *Hooks are for 4 GPM discharge tubes
17690014Metering tip (kit)
18500870Tubing, 1/4" x 7'
19509900Weight
2010089410Foot valve -- Viton (EPDM also available, order 10076302)

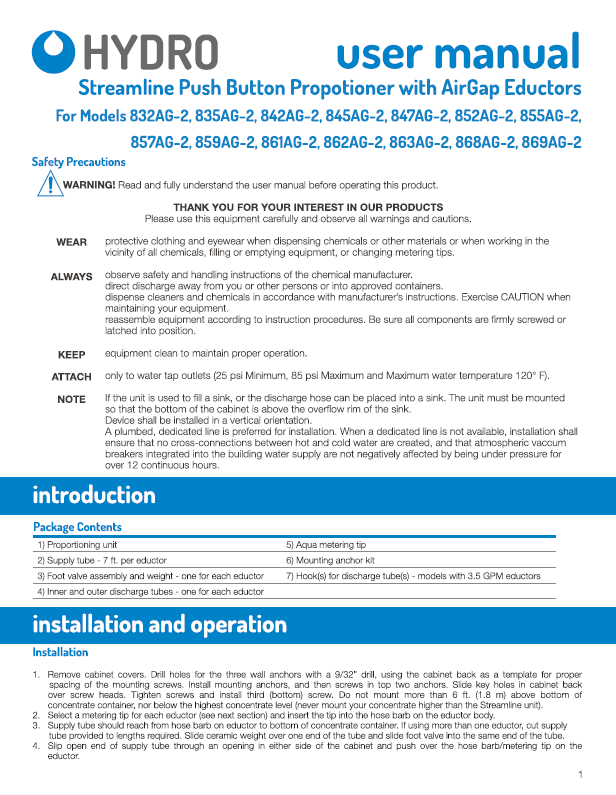

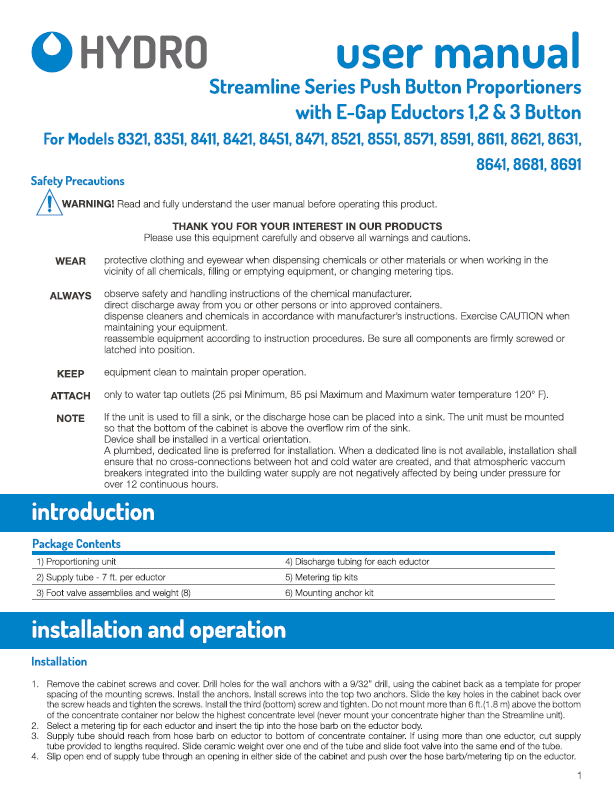

Streamline Set Up and Use

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

Up to four different configurations.

Both E-Gap and AirGap.

3.5 GPM.

Applications where dispensers see a tremendous amount of physical abuse.

Yes, but there are minimum run quantities for special units.
