Venturi Dispenser, wall mounted, Up to 4 chemistries w/ 1 Dispenser
Over 30 years‘ experience in dilution technology culminates in the EvoDose. Capable of diluting up to four products, high or low flow with a lockable cabinet system, offering both bottle and pouch options, a remote activation gun and AccuPro pressure regulation technology the feature packed EvoDose really has it all.
Our EvoDose is designed to comply with the EN1717 water regulations, which prevents the contamination of potable water systems, making it a safe and reliable choice for diluting chemicals in industrial and commercial settings.
Available in EU only
Markets
Applications
Filling Mop Buckets Filling Spray Bottels Filling Sinks

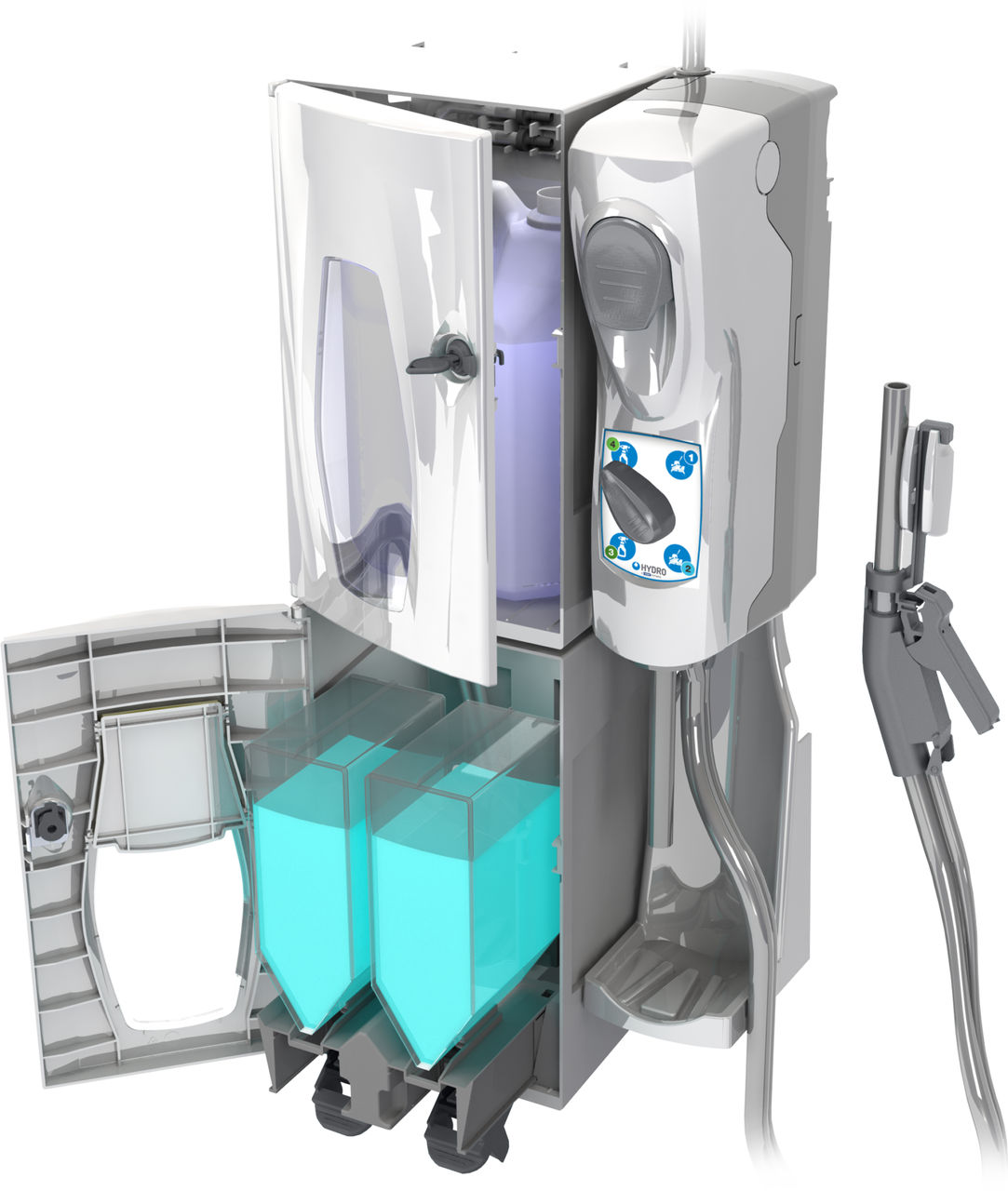

Available with cabinets that can situate both bottles and pouches
Features patented AccuPro Pressure Regulation Technology That Reduces Chemical Consumption by 20%
Allows end user to dilute up to four different chemicals with the same device. Reduction in total cost of ownership by up to 15%.
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with the 4 product dispenser. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
EvoDose comes along with cabinets that can house either bottles or pouches. Since chemical companies feature different containers, EvoDose is able to provide the necessary versatility to operate with different types of containers.
By using fewer components to deliver multiple products in the same equipment makes the EvoDose dispenser an economical choice
Model Number | Eductor Configuration | Activation Option | Discharge Hose Option | With Bottle Shelf | Water Fitting Option | With Cabinets | Viscous Pickup Tube Kit | Approx. standard dilution range H2O : Chem. | ||||
Push button | Bottle Fill | Standard | Bottle Fill | Remote Gun | 4 lit./min. | 14 lit./min. | ||||||
859353GB | Single Product - HF | ✓ | ✓ | 3/4” Swivel | 5:1 to 400:1 | |||||||
859323GB | Single Product - HF | ✓ | ✓ | JG Side | 5:1 to 400:1 | |||||||
859313GB | Single Product - HF | ✓ | ✓ | JG Up & Down | 5:1 to 400:1 | |||||||
859352GB | Single Product - HF | ✓ | ✓ | 3/4” Swivel | 5:1 to 400:1 | |||||||
859322GB | Single Product - HF | ✓ | ✓ | JG Side | 5:1 to 400:1 | |||||||
859312GB | Single Product - HF | ✓ | ✓ | JG Up & Down | 5:1 to 400:1 | |||||||
859354GB | Single Product - HF | ✓ | ✓ | 3/4” Swivel | ✓ | 5:1 to 400:1 | ||||||
859324GB | Single Product - HF | ✓ | ✓ | JG Side | ✓ | 5:1 to 400:1 | ||||||
859314GB | Single Product - HF | ✓ | ✓ | JG Up & Down | ✓ | 5:1 to 400:1 | ||||||
859343GB | Single Product - HF | ✓ | ✓ | 3/4” Swivel | ✓ | 10:1 to 400:1 | ||||||
859333GB | Single Product - HF | ✓ | ✓ | JG Up & Down for Cabinets | ✓ | 10:1 to 400:1 | ||||||
859342GB | Single Product - HF | ✓ | ✓ | 3/4” Swivel | ✓ | 10:1 to 400:1 | ||||||
859332GB | Single Product - HF | ✓ | ✓ | JG Up & Down for Cabinets | ✓ | 10:1 to 400:1 | ||||||
8512GB | Single Product - HF | ✓ | ✓ | ✓ | ✓ | 3/4” Swivel | 3:1 to 100:1 | |||||
859221GB | Single Product - HF | ✓ | ✓ | ✓ | ✓ | JG Side | 3:1 to 100:1 | |||||
859211GB | Single Product - HF | ✓ | ✓ | ✓ | ✓ | JG Up & Down | 3:1 to 100:1 | |||||
859241GB | Single Product - HF | ✓ | ✓ | ✓ | ✓ | 3/4” Swivel | ✓ | 3:1 to 100:1 | ||||
859231GB | Single Product - HF | ✓ | ✓ | ✓ | ✓ | JG Up & Down for Cabinets | ✓ | 3:1 to 100:1 |
