    FM-800

    Accessory that improves safety and wash results in laundry sites with peristaltic pumps.

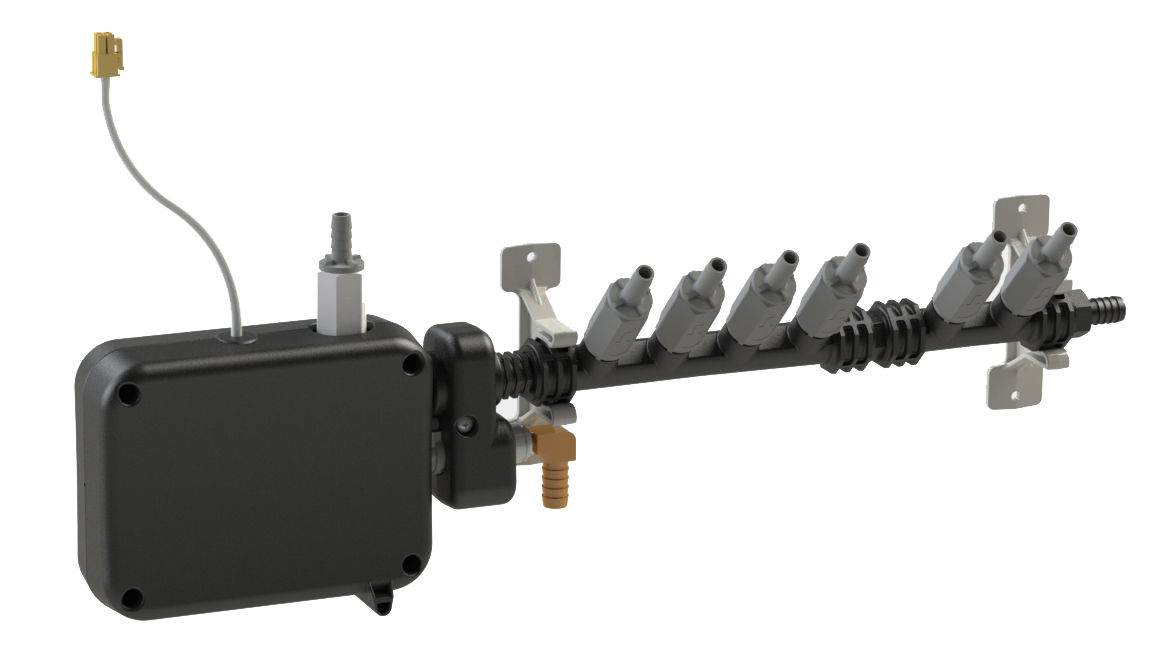

    The FM-800 Flush Manifold for commercial laundry transfers liquid laundry products from the dispenser to the washer using water flow via a single discharge tube. It minimizes leak points and is designed to optimize safety and reliability by completely flushing chemical products to the washer.

    Markets

    Laundry

    Applications

    On-Premise

    Benifits One

    Durable flush manifold that withstands the harshest chemicals like concentrated NaOH, D-Limonene, and Sour.

    Includes a flow-switch to prevent unsafe dosing if water flow is inadequate

    Easier to install with timesaving features like push to connect water inlet and body that swivels 45 degrees.

    FM-800 Resources

    Everything you need all in one place

    Reduces unwanted mixing

    Industry standard ball and spring check valves prevent unwanted chemical mixing

    Incomplete mixing is a thing of the past

    An integrated flow switch avoids incomplete dispensing with water flows under 0.65 GPM

    Design Provides Ease of Installation

    Straight and 90° hose barbs with a push-to-connect interface ensure an easy and hassle-free install. Easily connects to most Hydro dispensing systems.

    Extends laundry dilution equipment

    Reduces stress on the peristaltic pump system by using water to transport products over long distances.

    Optimizes safety and cleaning results

    Avoids potentially hazardous chemical mixing by flushing with an adequate water supply between dosages

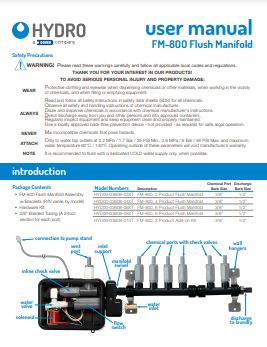

    FM-800-Manual

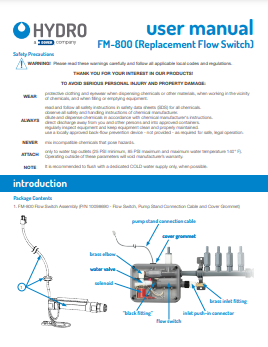

    INST-SHEET-FLOW-SWITCH-REPLACEMENT

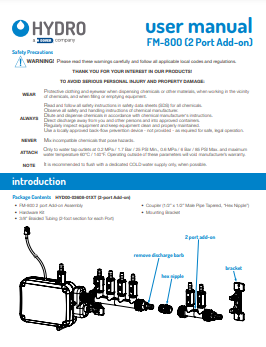

    INST-SHEET-2-PORT-MANIFOLD-ADD-ON
    INST-SHEET-PRESSURE-GAUGE-FM-800

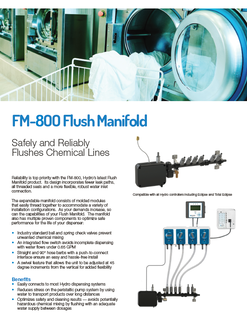

    FM-800-Datasheet-9.5.19-319x319
    Model No.DescriptionPart Number
    FM-802Modular Flush Manifold 2-product00-03608-02XT
    FM-804Modular Flush Manifold 4-product00-03608-04XT
    FM-806Modular Flush Manifold 6-product00-03608-06XT
    FM-808Modular Flush Manifold 8-product00-03608-08XT
    FM-800Modular Flush Manifold 2-product add-on00-03608-01XT
    FM-800-Datasheet-9.5.19

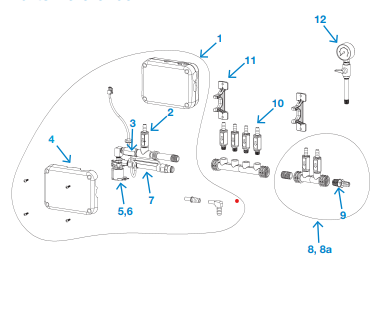

    KeyPart No.Description
    1

    Inlet Manifold Kit

    		 00-03608-00XT
    2Vent Port Check Valve, White 41-04807-00
    3Inline Check Valve41-06508-44
    4Cover Kit with Screws  10096138XT
    5Solenoid Valve Rebuild Kit 15-03778-00
    6

    Solenoid Valve Replacement

    		 49-06472-10
    7Flow Switch Replacement Kit (Includes Fitting and Wire Harness) 10098690

    82 Port Add-On Kit (Includes Check Valves and End Fittings) 00-03608-01XT
    9Discharge Barb 41-04996-01
    10Chemical Port Check Valve 41-04207-46
    11Wall Hanger Kit (2 Hangers with Screws and Anchors)10096115
    12Pressure Gauge Kit 10098692
    filenotfound

    No files found.

    Ready to get started?

    Our experts are here to help. Tell us more about what you need
    so we can connect you to the right Hydro experts.

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    Common Questions

    Have a different question? Reach Out

    The unit has been tested with the industries harshes laundry chemicals, including concentrated alkali, sours, and even D-Limonene. It also swivels in 45 degree increments to simplify and speed up installations.

    No, the flush manifold is included in the EvoClean.

     .75 GPM. Below this level, the pump will not operate because there is not adequate water flow through the manifold.

    Hydro sells the FM800 in 2, 4, 6, and 8 product configurations.

    Please check the locator associated with the Hydro website.
