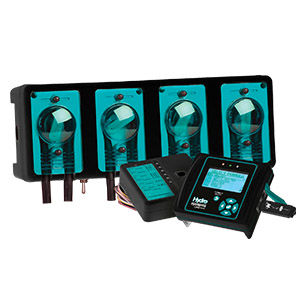

    LM-200

    Peristaltic Pump, Commercial Laundry, 8 Chemistries, Up to 256 oz /min (7,570 mL per min.)

    The LM200 dispenser system is a compact, low cost, easy to use dispenser for on premise laundry applications. It includes a washer mounted Controller, a Machine Interface, and a wall mounted Pump Module. It can handle up to 6 laundry chemicals and up to 20 different formulas. It is often paired with our Total Eclipse controller.

    Markets

    Laundry

    Applications

    On-Premise

    Benifits One

    Durable OPL dispenser* known for reliability and ease of use.

    Benifits One

    Pre-wired power and signals to increase safety and reduce installation time.

    Benifits One

    Compatible with either Total Eclipse or Connected Total Eclipse Controllers offering up to 48 formulas.

    LM-200 Resources

    Everything you need all in one place

    Handles multiple chemistries

    Can handle up to six products

    Features high capacity pumps

    Ability to pump up to two GPM with air-operated diaphragm pumps

    Ease of maintenance

    Features quick squeeze tube change that require no special tools

    Durable construction

    Features a stainless steel construction that extends the life of the unit providing a lower cost of ownership

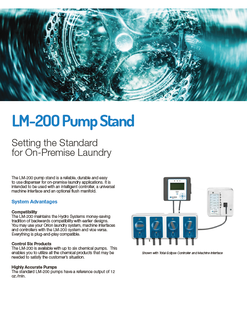

    LM-200-Datasheet-319x319
    Squeeze-Tube-Chart-319x319

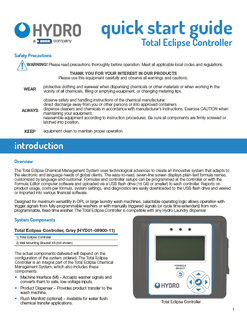

    HYD20-08808-00-QSG-Total-Eclipse-319x319
    Print

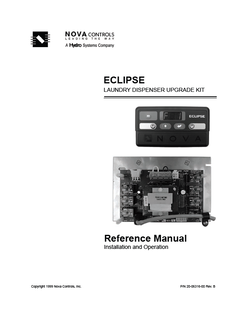

    lm-200-upgrade-kit-manual-319x319
    ModelDescription
    00-07660-720Mercury 2 X 6 oz. / min. pump
    00-07710-720Mercury 2 X 6 oz. / min. pump w / flush manifold
    00-07660-730Mercury 3 X 6 oz. / min. pumps
    00-07710-730Mercury 3 X 6 oz. / min. pumps w / flush manifold
    00-07660-721Mercury 2 X 6 oz. / min. pumps w / solenoid valve
    Model*Description
    LM-2202 pump model
    LM-2303 pump model
    LM-2343 pump model in a 4 pump cabinet
    LM-2404 pump model
    LM-2454 pump model in a 5 pump cabinet
    LM-2505 pump model
    LM-2565 pump model in a 6 pump cabinet
    LM-2606 pump model

    How to Retrofit a Hydro LM Pump from 115V to 230V 208V

    Ready to get started?

    Our experts are here to help. Tell us more about what you need
    so we can connect you to the right Hydro experts.

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    Common Questions

    Have a different question? Reach Out

    Many of our customers have migrated to EvoClean, but some are still quite happy using our peristaltic pumps. Our LM-200 pumpstand is known as being a "Tank", meaning it is very reliable and proven over many decades. There are some installations with low-pressure that cannot afford an EvoBoost solution where peristaltic pumps are still used

    You can use a standard Total Eclipse or Connected Total Eclipse. In 2023, we phased out the Eclipse Controller.

    LM-200 is available in 2, 3, 4, 5, or 6 products. For 8 products, an EvoClean or LL-Series pump is required.

    The standard tube for the LM-200 (12 oz/min) pump is an EPDM tube with an OD of 1/2''

    Please check the locator associated with the Hydro website.
