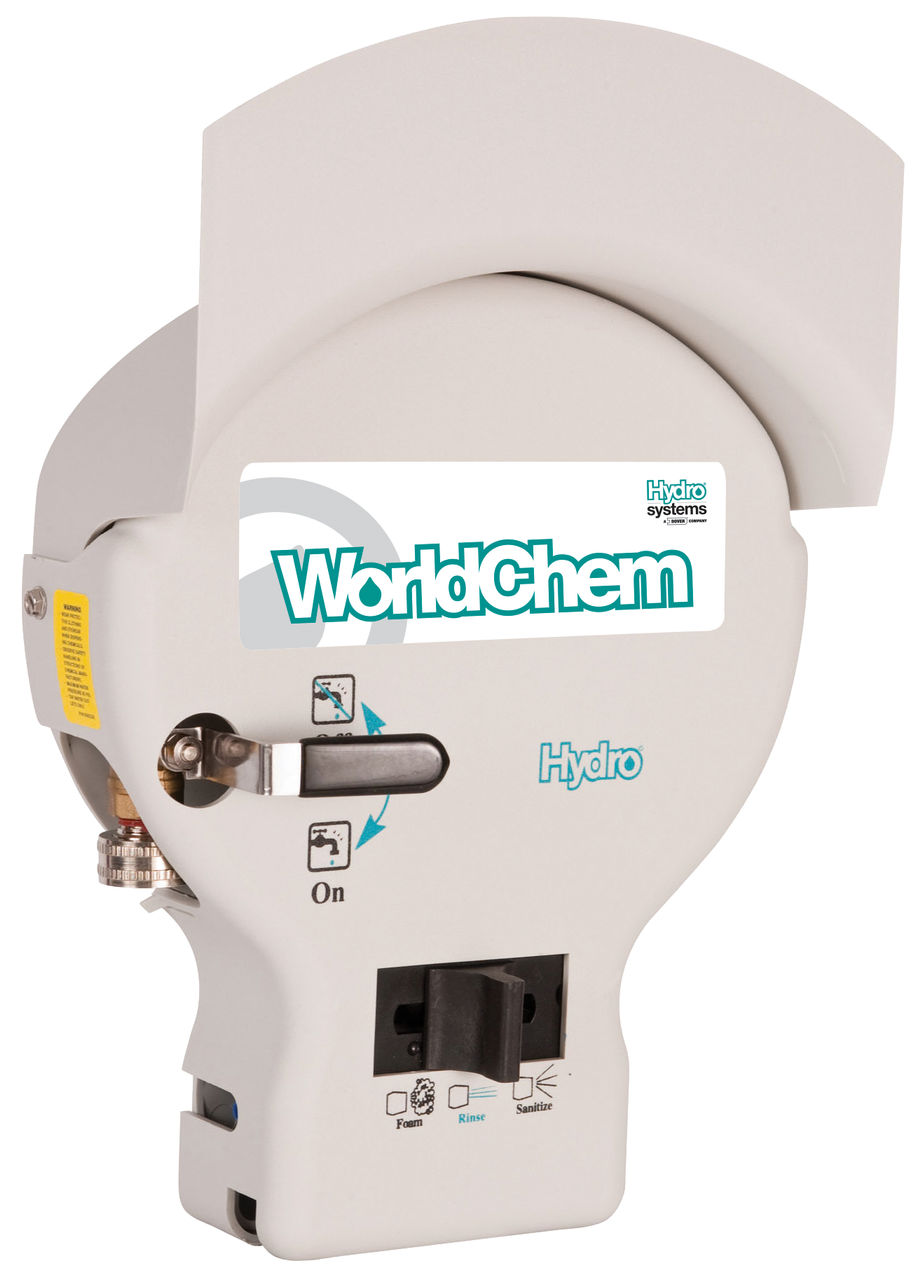

Venturi Dispenser, wall mounted foaming and spraying, Up to 2 chemistries, one dispenser
The WorldChem cleaning and sanitation system automatically dilutes and dispenses concentrated cleaning products in a foaming and/or spraying mode. Models for dispensing one or two products are available, both providing full volume rinse. WorldChem provides you with reliable performance in the most demanding cleaning situations.
Applications
Foaming and Spraying Chemical Delivery
Utilizes Hydro Systems tips that allow for up to 20% better dilution accuracy
Reduces the cost of ownership by 50% since the same dispenser can process more than one chemistry
Reduces the cost of ownership by 50% since the same dispenser can both spray and foam
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
WorldChem features the ability to choose between one or two products with a rinse feature. Since a different piece of equipment does not need to be purchased to process a second chemistry, this results in the lower overall cost of ownerhip.
Unlike other equipment, the same dispenser can be used to both spray and foam chemistries. Depending on the type of way you want to apply the chemistry, you can switch between foaming and spraying options without needing to purchase additional equipment.
Part No. | Description |
HYD958 | WorldChem One Product |
HYD959 | WorldChem Two Products |

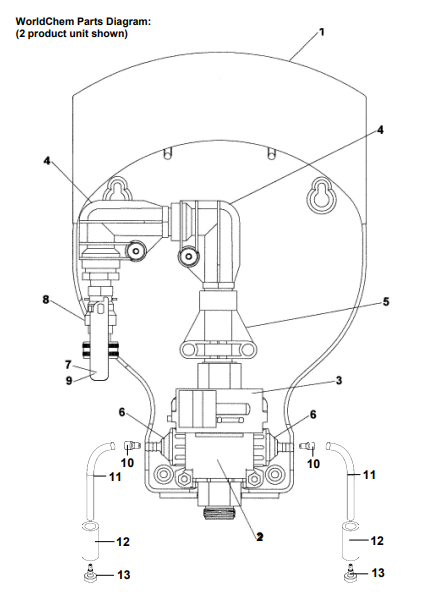

Key | Part No. | Description |
1 | 10089824 | Cabinet back |
2 | 10092102 | Eductor Assembly |
3 | 10092105 | Gear & Bracket Assembly |
4 | 10059204 | Elbow |
5 | 10048302 | Connecting Tube |
6 | 10069270 | Check Valve, 3 psi, Viton |
7 | 10089826 | Handle, Ball Valve |
8 | 10084080 | Ball Valve |
9 | 10089838 | Handle Sleeve, Black |
10 | 10027209 | Metering tip kit |
11 | 500814 | Tubing |
12 | 509900 | Ceramic weight |
13 | 609600 | Foot strainer |
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
WorldChem features the ability to choose between one or two products with a rinse feature. Since a different piece of equipment does not need to be purchased to process a second chemistry, this results in the lower overall cost of ownerhip.
Unlike other equipment, the same dispenser can be used to both spray and foam chemistries. Depending on the type of way you want to apply the chemistry, you can switch between foaming and spraying options without needing to purchase additional equipment.
Part No. | Description |
HYD958 | WorldChem One Product |
HYD959 | WorldChem Two Products |
Key | Part No. | Description |
1 | 10089824 | Cabinet back |
2 | 10092102 | Eductor Assembly |
3 | 10092105 | Gear & Bracket Assembly |
4 | 10059204 | Elbow |
5 | 10048302 | Connecting Tube |
6 | 10069270 | Check Valve, 3 psi, Viton |
7 | 10089826 | Handle, Ball Valve |
8 | 10084080 | Ball Valve |
9 | 10089838 | Handle Sleeve, Black |
10 | 10027209 | Metering tip kit |
11 | 500814 | Tubing |
12 | 509900 | Ceramic weight |
13 | 609600 | Foot strainer |
Have a different question? Reach Out
Yes. WorldChem needs to be hooked up to a water source to successfully operate.
160 degrees F. or 70 degrees C.
Either one of two chemistries can be diluted depending on the model.
25 psi.
4 GPM.
