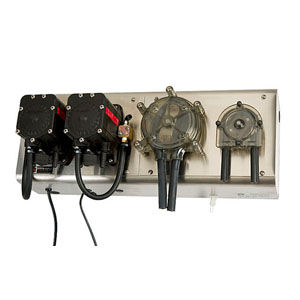

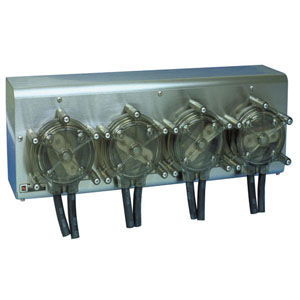

    LL-6000 and LL-80000 System

    Peristaltic Pump, Commercial Laundry, 8 Chemistries, Up to 256 oz /min (7,570 mL per min.)

    The LM200 dispenser system is a compact, low cost, easy to use dispenser for on premise laundry applications. It includes a washer mounted Controller, a Machine Interface, and a wall mounted Pump Module. It can handle up to 6 laundry chemicals and up to 20 different formulas. It is often paired with our Total Eclipse controller.

    Markets

    Laundry

    Applications

    On-Premise

    Benifits One

    Durable peristaltic pumps for large laundry installations.

    Benifits One

    Stainless steel construction.

    Benifits One

    Ability to pump up to 2 GPM with air-operated diapragm pumps.

    LL-6000 and LL-80000 System Resources

    Everything you need all in one place

    Handles multiple chemistries

    Can handle up to six products

    Features high capacity pumps

    Ability to pump up to two GPM with air-operated diaphragm pumps

    Ease of maintenance

    Features quick squeeze tube change that require no special tools

    Durable construction

    Features a stainless steel construction that extends the life of the unit providing a lower cost of ownership

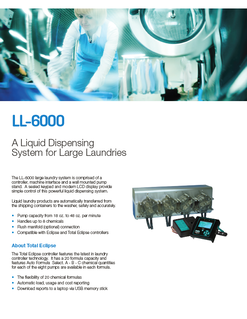

    LL-6000-Datasheet-9.5.17-319x319

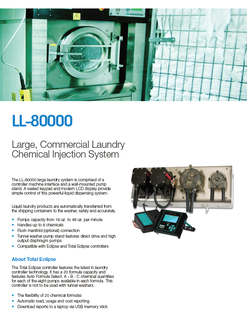

    LL-80000-Datasheet-9.14.17-319x319

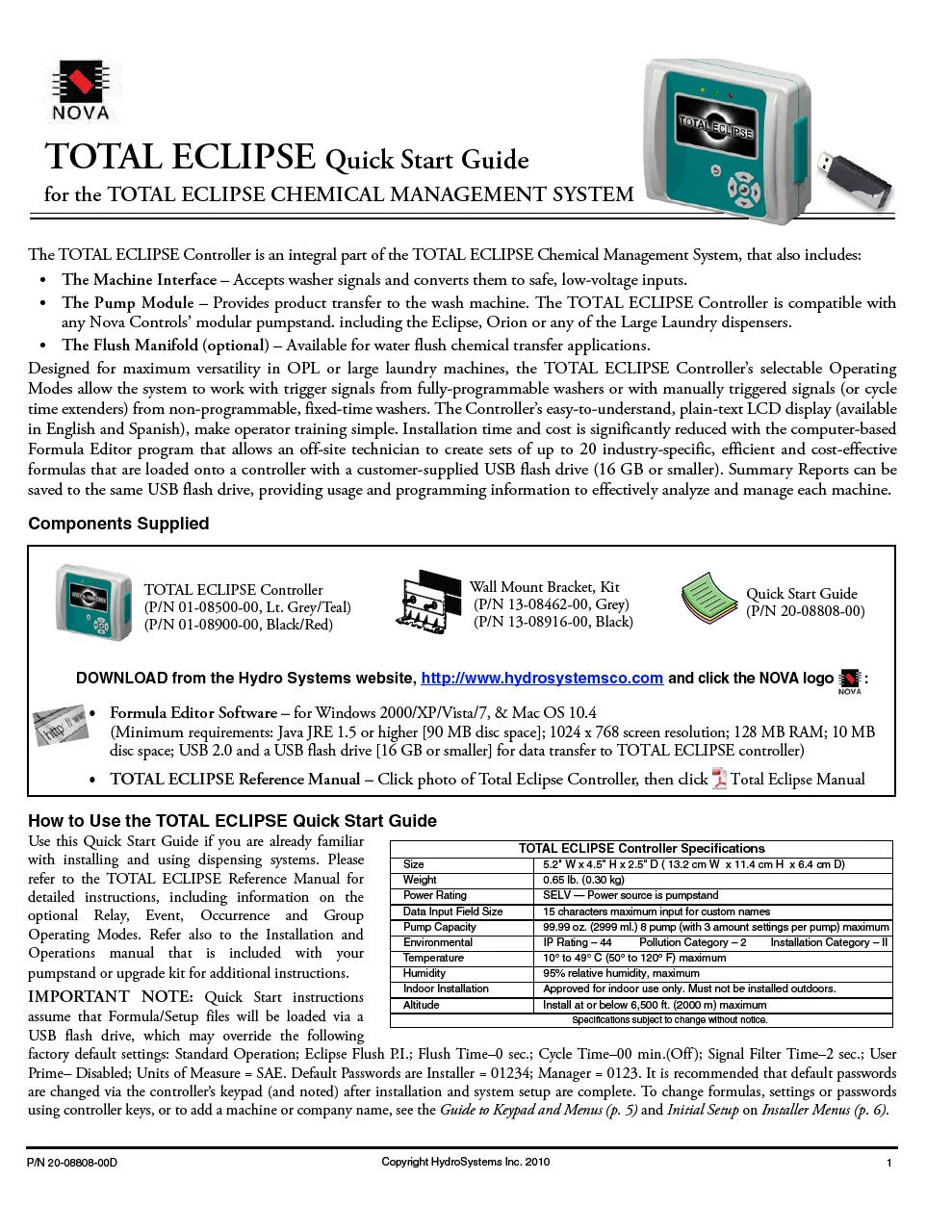

    20-08808-00D

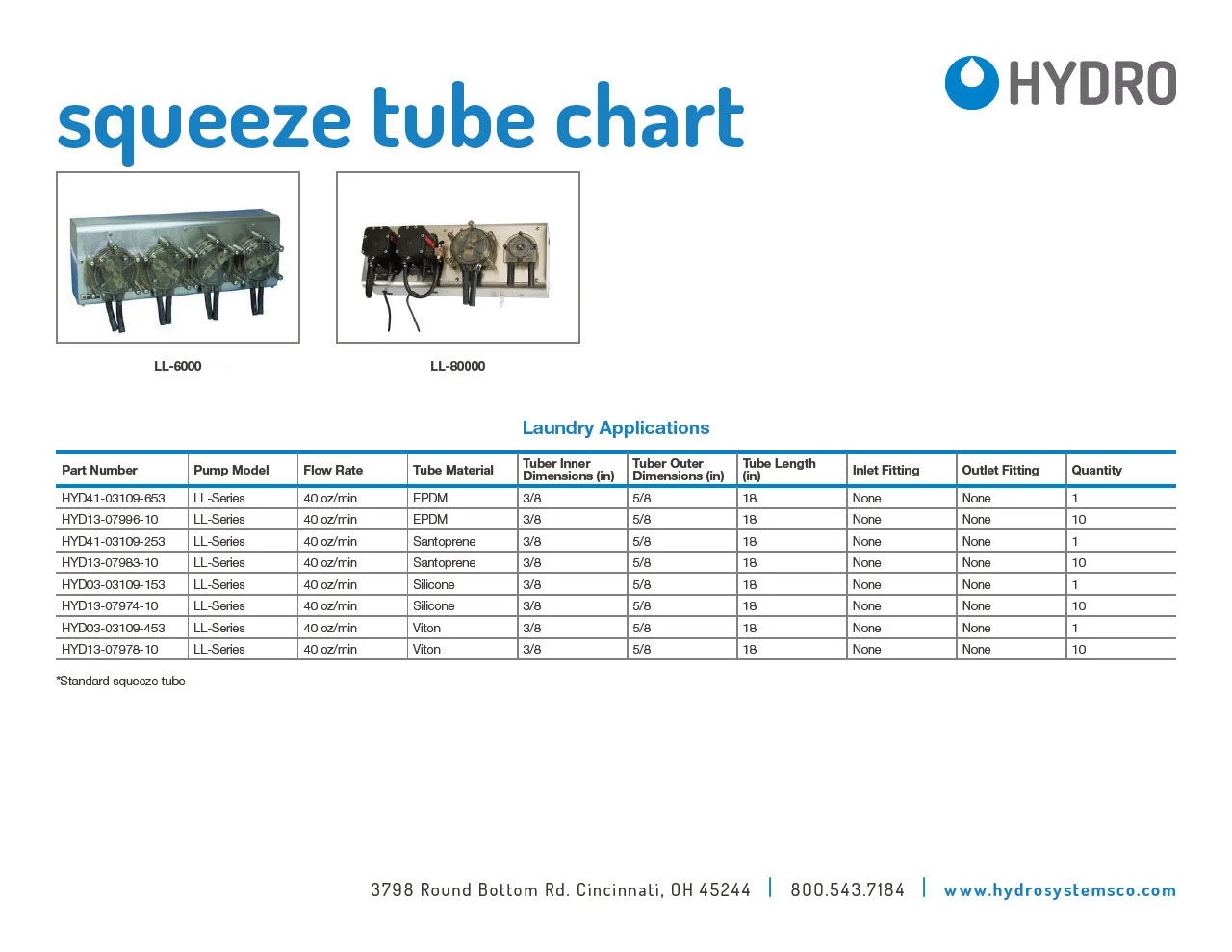

    Squeeze-Tube-Chart-LL-Series

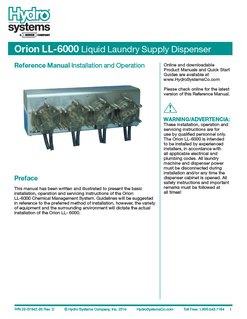

    ll6000-20-07842-00-d-319x319

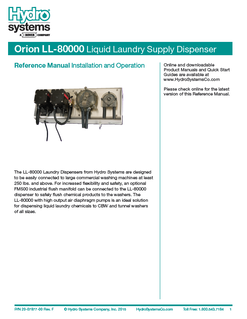

    20-07877-00-F-MANUALLAUNDRYORIONL-L-8000-319x319
    Part NumberDescription
    LL-6340 Three-pump system
    LL-6440 Four-pump system
    LL-6650 Five-pump system
    LL-6660 Six-pump system
    LL-6870 Seven-pump system
    LL-6880Eight-pump system
    Part NumberDescription
    LL-84 ABC A = # of H.O. air pumps, B = # of 46 oz./min. pumps, C = # of 18 oz./min. pumps
    LL-86 ABC A = # of H.O. air pumps, B = # of 46 oz./min. pumps, C = # of 18 oz./min. pumps
    LL-88 ABCA = # of H.O. air pumps, B = # of 46 oz./min. pumps, C = # of 18 oz./min. pumps
    filenotfound

    No files found.

    Ready to get started?

    Our experts are here to help. Tell us more about what you need
    so we can connect you to the right Hydro experts.

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    Common Questions

    Have a different question? Reach Out

    Usage of LL pumps is in decline due to the EvoClean HF system (pumps up to 51 oz/minute) and Multi-Washer portfolio. There are still some sites with very large dosages (over 1 Gallon) where an LL-80000 pump is needed.

    The standard tube for the LL-60000 (40 oz/min) pump is an EPDM tube with an OD of 5/8

    The LL-60000 offers a low-flow (18 oz/min) or high-flow (48 oz/min) peristaltic pump. The LL-80000 additionally has an option for a 2 GPM air pump.

    You can use a standard Total Eclipse or Connected Total Eclipse.

    Please check the locator associated with the Hydro website.
