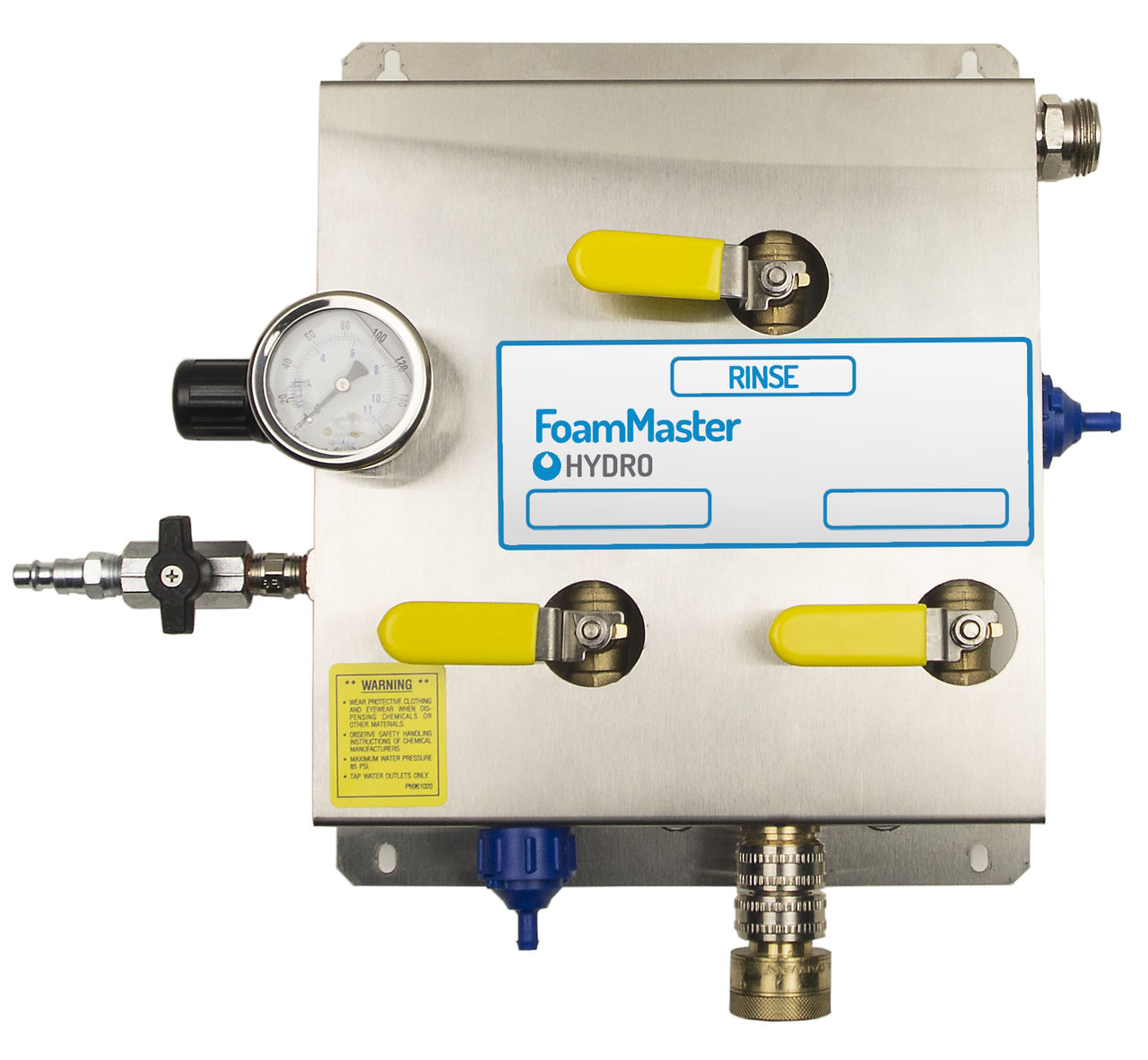

FoamMaster

Venturi Dispenser, wall mounted foaming, up to 2 chemistries, one dispenser, requires compressed air

FoamMaster power cleaning systems automatically dilute concentrated cleaning products with water, and use compressed air to generate a thick, rich, clinging foam. When it comes to large area cleaning, there’s no more effective and efficient method than foam cleaning. FoamMasters are available in both one and two product models!

Applications

Foaming and Spraying Chemical Delivery Vehicle Chemical Dilution

Reduces the cost of ownership since the equipment is manufactured from chemically compatible materials

Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy

Reduces the cost of ownership by 50% since the same dispenser can process more than one chemistry

FoamMaster Resources

Everything you need all in one place

Reduces the cost of ownership by 50% since the same dispenser can be process more than one chemistry

FoamMaster features the ability to choose between one or two products with a rinse feature. Since a different piece of equipment does not need to be purchased to process a second chemistry, this results in the lower overall cost of ownerhip.

Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy

The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.

Features chemically resistant materials that result in longer lasting equipment

Whether the eductors, metering tips, hoses, or hose hanger, FoamMaster features chemically resistant materials that provide for longer lasting equipment life.

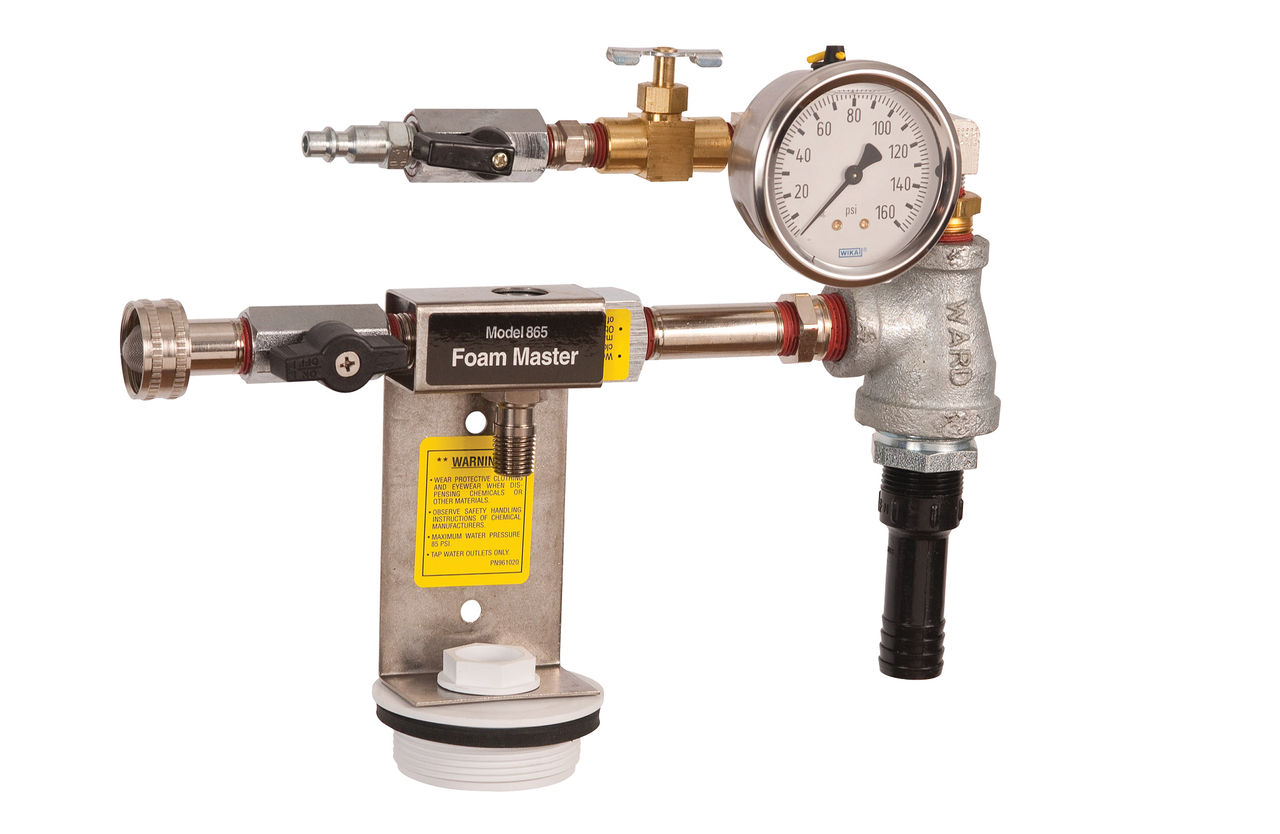

FoamMaster-865
FoamMaster-897
FoamMaster-898
FoamMaster-899

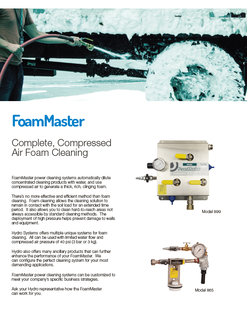

FoamMaster-Datasheet-319x319

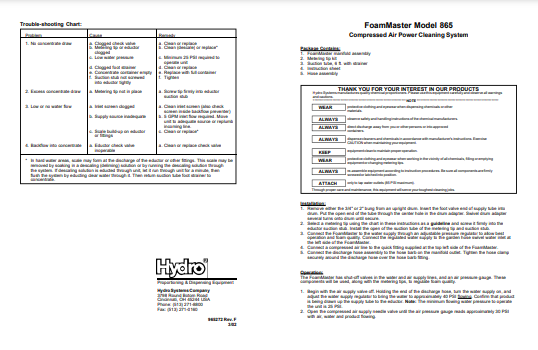

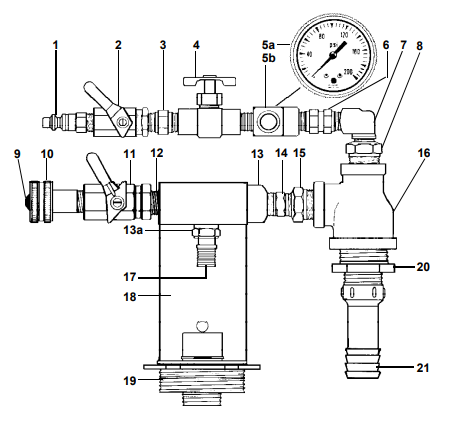

FoamMaster-865-Instruction-Sheet
KeyPart No.Description
1

419342

 Air inlet quick coupling
2502000 Ball valve
3234300 Hex nipple
4419313  Needle valve
5a10083000 Pressure gauge (0-200 PSI)
5b

620100

 Tee for pressure gauge
6419302 Check valve
7 505600 Street elbow
8371300 Reducing bushing
9 238100 Strainer washer
10276700  Swivel connector
1110080320 Ball valve
12230200 Close nipple
13203700Eductor assembly, 3.5 GPM (includes 13a check valve)
13a636900 Check valve
14604400 Hex nipple
15

2330-R

 Bushing
16419303  Reducing tee
17690015Metering tip (inside barb) - kit
18615000  Bracket
196162-A Bung adaptor assembly
20271900 Bushing, 3/4" x 1"
21419337 3/4" PVC hose nipple
NOT SHOWN:
 419301 Nozzle (inside Key #16)
 6400-ASuction tube, 1/2" x 6'
 372900 Clamp
 419339 3/4" clear hose (discharge)
 419340
Vinyl hose guard

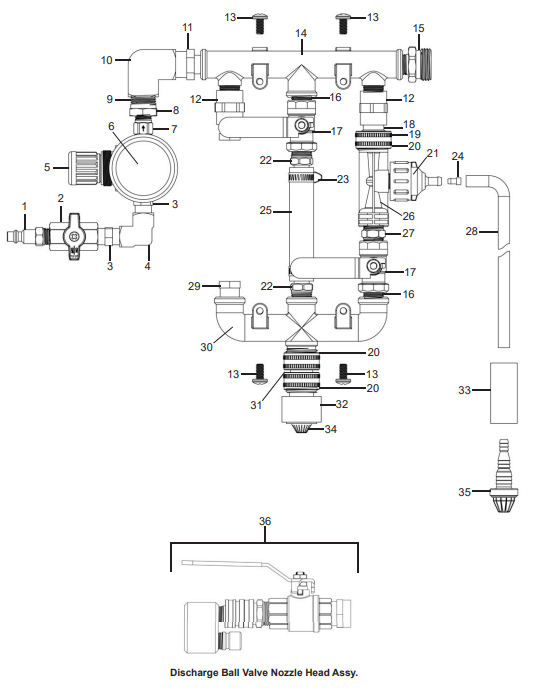

FoamMaster-897-Instruction-Sheet
KeyPart No.Description
1

419342

 1/4" MPT Air Coupler
2502000 Ball valve
3234300 Brass Hex Nipple 1/4 MP
4506000 Elbow, 1/4" FNPT PL
5a503400Air Regulator
6

10097704

 Press. Gauge, 2"
710088330 Check valve
82330-R Bushing
9419301Nozzle, H1(hidden)
10506900Elbow, 1/2" FNPT PL
11393100Reducer, 1/2" x 3/8" male
12 412800 Coupler, 3/8" FNPT
1310084025 Screw, 1/4 - 20 by 1/2"
1410091700  Manifold, Top
15328900Adapter,MGH x 3/8" MNPT
1610027700 Nipple, 3/8" close
1710084020Ball Valve,3/8",Bras
18276801 Swivel stem
19506502Swivel nut
20270700Washer
21

10069270

 Check Valve Viton 1/4"
22326000 Hose barb 1/2" x 3/8" NPT
23608300 Hose clamp, large
24690014Metering Tip Kit
2590022600 Hose, 1/2" ID, short
26

440900

Eductor,dark green 1.2GPM
27470100Hex nipple, 3/8" NPT
28500870 Tubing, 1/4" x 7'
29323338 Pipe plug, 3/8" NPT
3010091710Manifold, bottom
31607900Swivel, Hose, double 3/4"
3210035311V3 Check Valve
33509900 Ceramic weight
34238100Strainer, Washer
3590064415 Foot strainer
3610088356 Discharge Ball Valve Nozzle Head Assembly
NOT SHOWN:
 10097703 Cover Cover
 133 Hose, 3/4" x 25' Hose, 3/4" x 25'

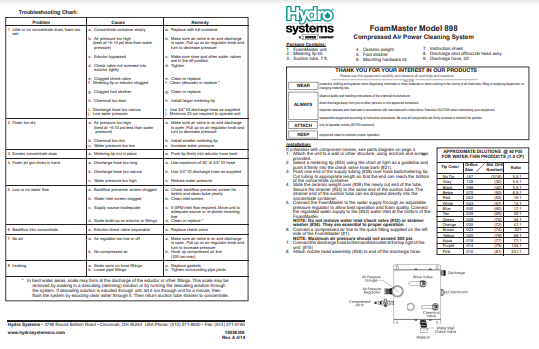

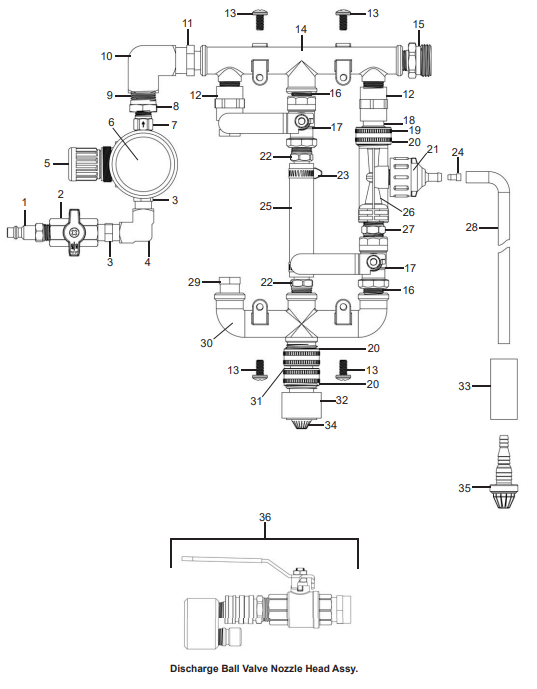

FoamMaster-898-Instruction-Sheet
KeyPart No.Description
1

419342

 1/4" MPT Air Coupler
2502000 Ball valve
3234300 Brass Hex Nipple 1/4 MP
4506000 Elbow, 1/4" FNPT PL
5a503400Air Regulator
6

10097704

 Press. Gauge, 2"
710088330 Check valve
82330-R Bushing
9419301Nozzle, H1(hidden)
10506900Elbow, 1/2" FNPT PL
11393100Reducer, 1/2" x 3/8" male
12 412800 Coupler, 3/8" FNPT
1310084025 Screw, 1/4 - 20 by 1/2"
1410091700  Manifold, Top
15328900Adapter,MGH x 3/8" MNPT
1610027700 Nipple, 3/8" close
1710084020Ball Valve,3/8",Bras
18276801 Swivel stem
19506502Swivel nut
20270700Washer
21

10069270

 Check Valve Viton 1/4"
22326000 Hose barb 1/2" x 3/8" NPT
23608300 Hose clamp, large
24690014Metering Tip Kit
2590022600 Hose, 1/2" ID, short
26

440900

Eductor,orange 2.4GPM
27470100Hex nipple, 3/8" NPT
28500870 Tubing, 1/4" x 7'
29323338 Pipe plug, 3/8" NPT
3010091710Manifold, bottom
31607900Swivel, Hose, double 3/4"
3210035311V3 Check Valve
33509900 Ceramic weight
34238100Strainer, Washer
3590064415 Foot strainer
3610088356 Discharge Ball Valve Nozzle Head Assembly
NOT SHOWN:
 10097703 Cover Cover
 133 Hose, 3/4" x 25'Hose, 3/4" x 25'

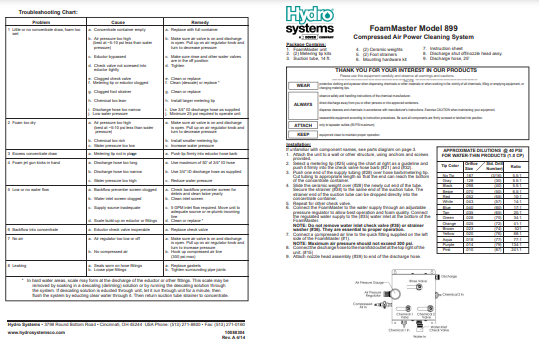

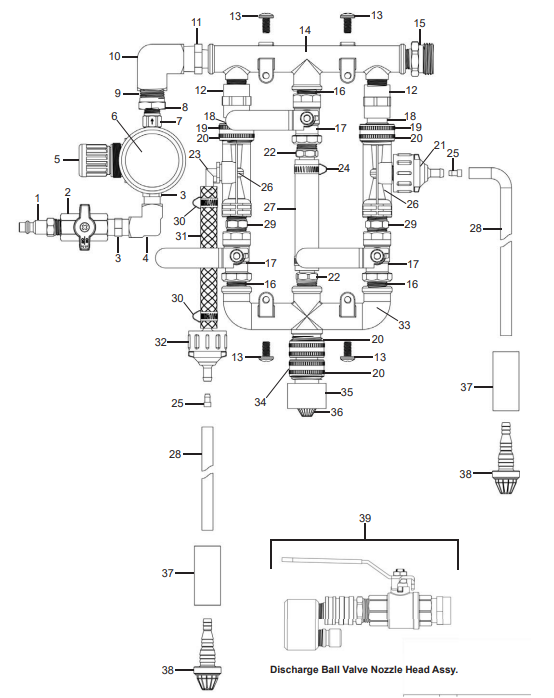

FoamMaster-899-Instruction-Sheet
KeyPart No.Description
1

419342

 1/4" MPT Air Coupler
2502000 Ball valve
3234300 Brass Hex Nipple 1/4 MP
4506000 Elbow, 1/4" FNPT PL
5a503400Air Regulator
6

10097704

 Press. Gauge, 2"
710088330 Check valve
82330-R Bushing
9419301Nozzle, H1(hidden)
10506900Elbow, 1/2" FNPT PL
11393100Reducer, 1/2" x 3/8" male
12 412800 Coupler, 3/8" FNPT
1310084025 Screw, 1/4 - 20 by 1/2"
1410091700  Manifold, Top
15328900Adapter,MGH x 3/8" MNPT
1610027700 Nipple, 3/8" close
1710084020Ball Valve,3/8",Bras
18276801 Swivel stem
19506502Swivel nut
20270700Washer
21

10069270

 Check Valve Viton 1/4"
22326000 Hose barb 1/2" x 3/8" NPT
2310077500Angled barb
24608300 Hose clamp, large
25690014Metering Tip Kit
26

440900

Eductor,dark green 1.2GPM
2790022600 Hose, 1/2" ID, short
28500870 Tubing, 1/4" x 14'
29470100 Hex nipple, 3/8" NPT
3010053300 Hose clamp, small
3110088309Tube, Braided PVC
3210069275Check valve, inline 1/4" viton
3310091710Manifold, bottom
34607900Swivel, Hose, double 3/4"
3510035311V3 Check Valve
36238100Strainer, Washer
37509900 Ceramic weight
3890064415 Foot strainer
3910088356 Discharge Ball Valve Nozzle Head Assembly
NOT SHOWN:
 10097703 Cover Cover
 133 Hose, 3/4" x 25' Hose, 3/4" x 25'

Watch the FoamMaster in Action in our new FoamMaster Video

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

40 psi or 3 bar.

Yes. There are FoamMaster models that can handle two chemistries.

500:1 with the HYD898 unit.

Pleae contact Hydro for chemistries that can be used with FoamMaster.

Please check the locator associated with the Hydro website.
